TP-Link Archer VR300 AC1200 Wireless VDSL/ADSL Modem Router High-Speed Dual-Band Connectivity With Advanced Features

Product Features

The TP-Link Archer VR300 AC1200 Wireless VDSL/ADSL Modem Router is engineered to offer high-speed internet access and reliable connectivity for both VDSL and ADSL connections. This modem router supports dual-band wireless technology, providing speeds of up to 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band. With its advanced capabilities, the Archer VR300 ensures robust performance for streaming, gaming, and everyday browsing, making it an ideal choice for both home and small office environments.

Equipped with four fixed external antennas, the Archer VR300 enhances wireless coverage and signal strength, while its comprehensive set of features includes parental controls, guest network access, and firewall security. The device supports a wide range of security protocols, including WPA/WPA2 encryption, and offers quality of service (QoS) to prioritize network traffic. Additionally, the modem router’s IPv6 compatibility and multilingual interface facilitate a user-friendly experience and future-proof networking.

Key Features

• High-Speed Wireless Performance: Delivers up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, ensuring fast and stable internet for multiple devices.

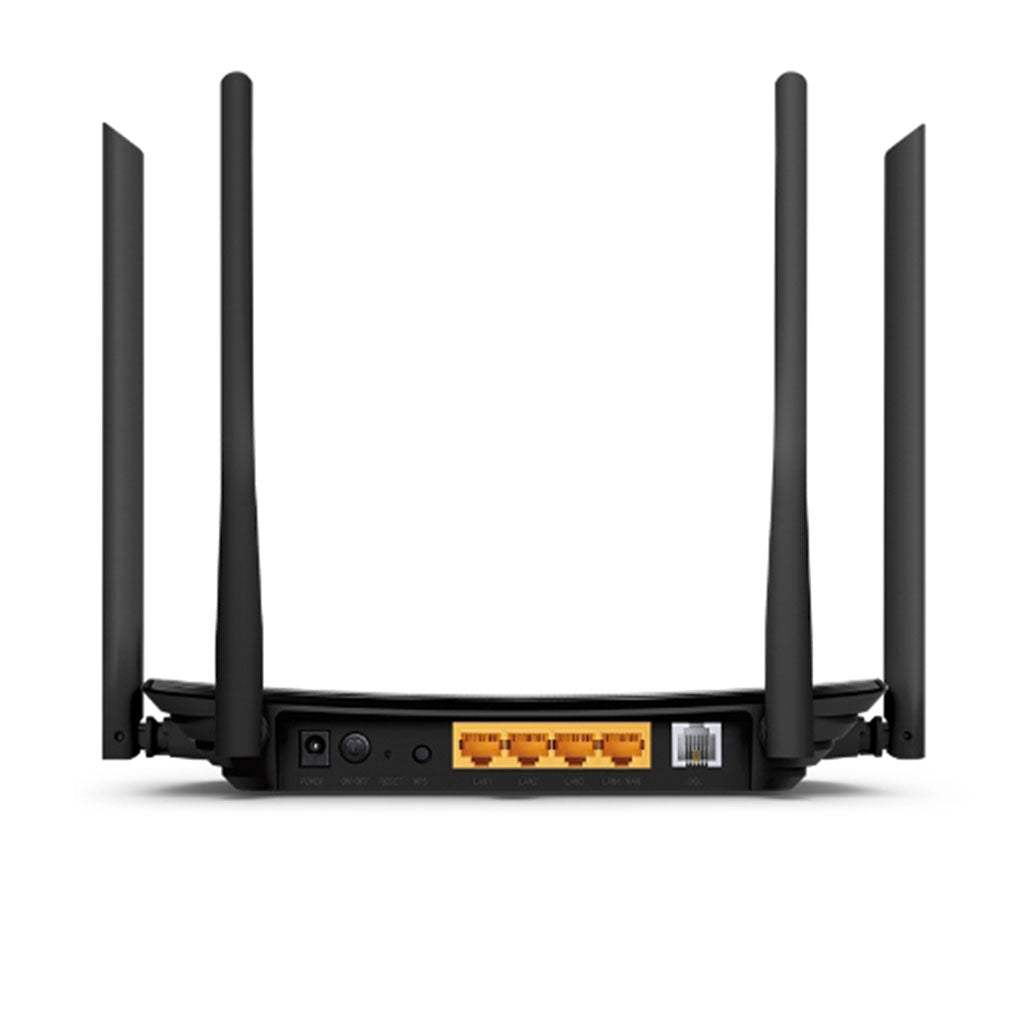

• Comprehensive Connectivity Options: Includes three 10/100 RJ45 LAN ports, one 10/100 RJ45 LAN/WAN port, and one RJ11 port for versatile connection setups.
• Advanced Security and Control: Features firewall protection, NAT, access control, and support for WEP, WPA/WPA2 encryption to safeguard your network.
• Guest Network Access: Provides separate network access for guests, enhancing security and privacy for your primary network.
• Quality of Service (QoS): Prioritizes network traffic by device or application to ensure optimal performance for critical tasks.

Specifications

Hardware

• Interface: 3 10/100 RJ45 LAN Ports, 1 10/100 RJ45 LAN/WAN Port, 1 RJ11 Port
• Button: WPS Button, Power On/Off Button, Reset Button
• Power Supply: 12V/1A
• VDSL2 Standards: ITU G.993.2, Up to 17a profile (POTS), ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP)
• ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT), ITU-T G.992.2 (G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1
• ADSL2 Standards: ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis)
• ADSL2+ Standards: ITU-T G.992.5
• Dimensions (W x D x H): 385 × 290 × 76 mm

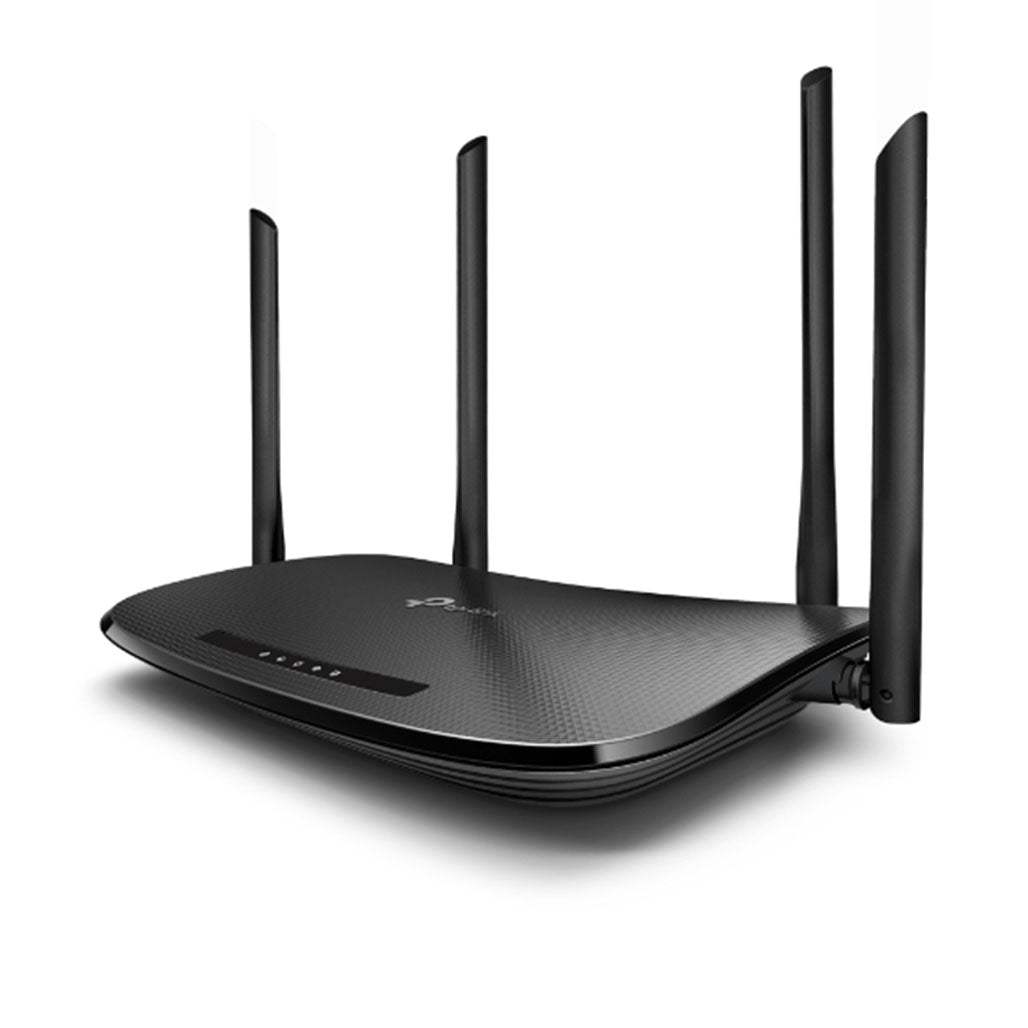

• Antenna Type: 4 fixed external antennas

Wireless

• Standards: IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
• Speeds: 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
• Transmit Power: 2.4GHz <20 dBm (EIRP), 5GHz <23 dBm (EIRP)
• Functions: Access Point / Wireless Bridge, Wireless Enable/Disable, SSID Broadcast Enable/Disable
• Security: WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, QSS (WPS)

Software

• Quality of Service: ATM QoS, Bandwidth Control
• Security: NAT Firewall, Access Control, IP and MAC Address Binding
• Operating Modes: VDSL/ADSL Modem Router, Wireless Router
• Management: Web Based Configuration (HTTP), Remote management, Command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools
• DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
• Port Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP
• Dynamic DNS: DynDns, NO-IP
• VPN Pass-Through: PPTP, L2TP, IPSec Passthrough
• Protocols: Supports IPv4 and IPv6
• ATM/PPP Protocols: ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER/IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
• Advanced Functions: Parental Control, Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP V1/V2/V3
• Guest Network: 2.4 GHz guest network, 5 GHz guest network

Other

• Certification: CE, RoHS, RCM
• Package Contents: AC1200 Wireless VDSL/ADSL Modem Router Archer VR300, External Splitter, RJ11 DSL Cable, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide
• System Requirements: Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux; Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser; Subscription with an Internet Service Provider (for Internet access)
• Environment: Operating Temperature: 0°C40°C (32°F104°F), Storage Temperature: -40°C70°C (-40°F158°F), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

Conclusion

The TP-Link Archer VR300 AC1200 Wireless VDSL/ADSL Modem Router offers robust performance and advanced features suitable for demanding internet environments. With high-speed dual-band wireless connectivity, a comprehensive set of security features, and flexible management options, it provides an efficient solution for maintaining a stable and secure network. This modem router's ability to handle various network functions and protocols ensures that it can meet the needs of diverse users, from casual browsing to high-performance applications.
