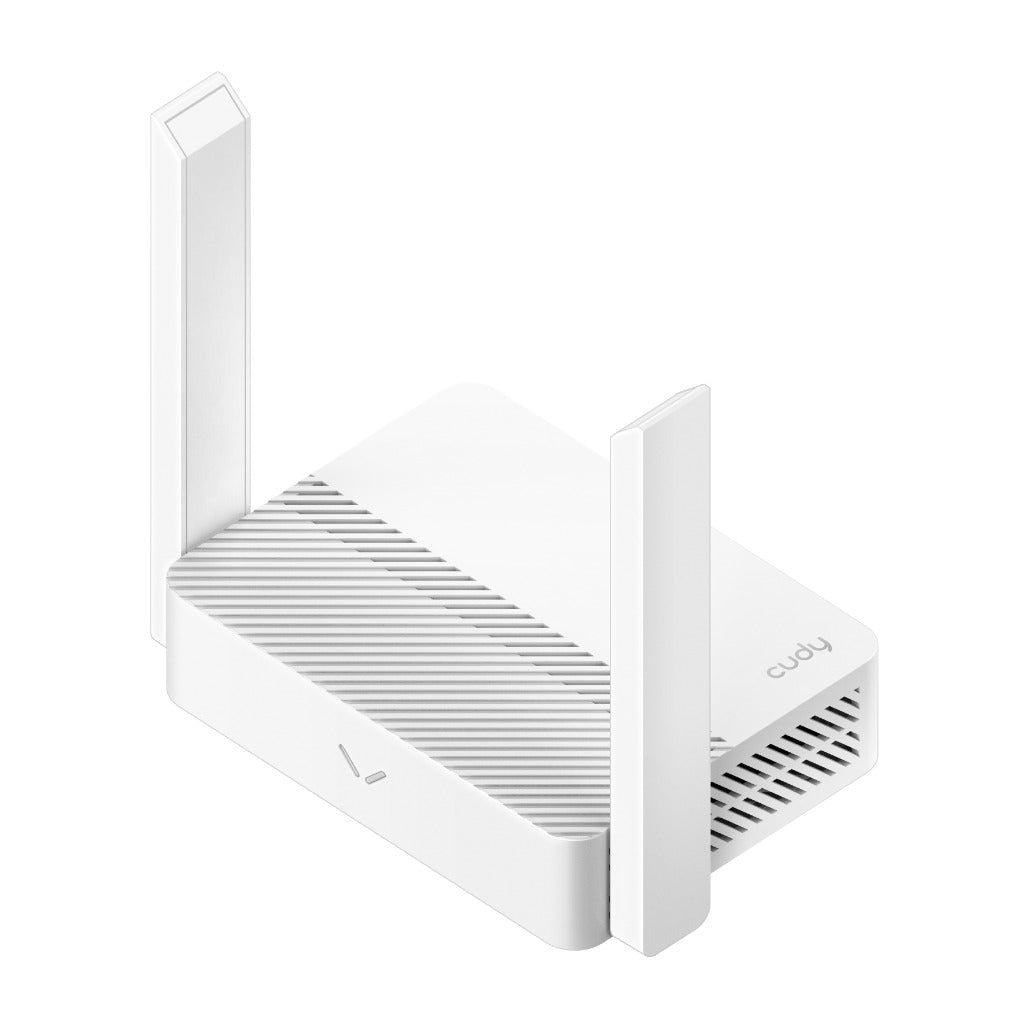

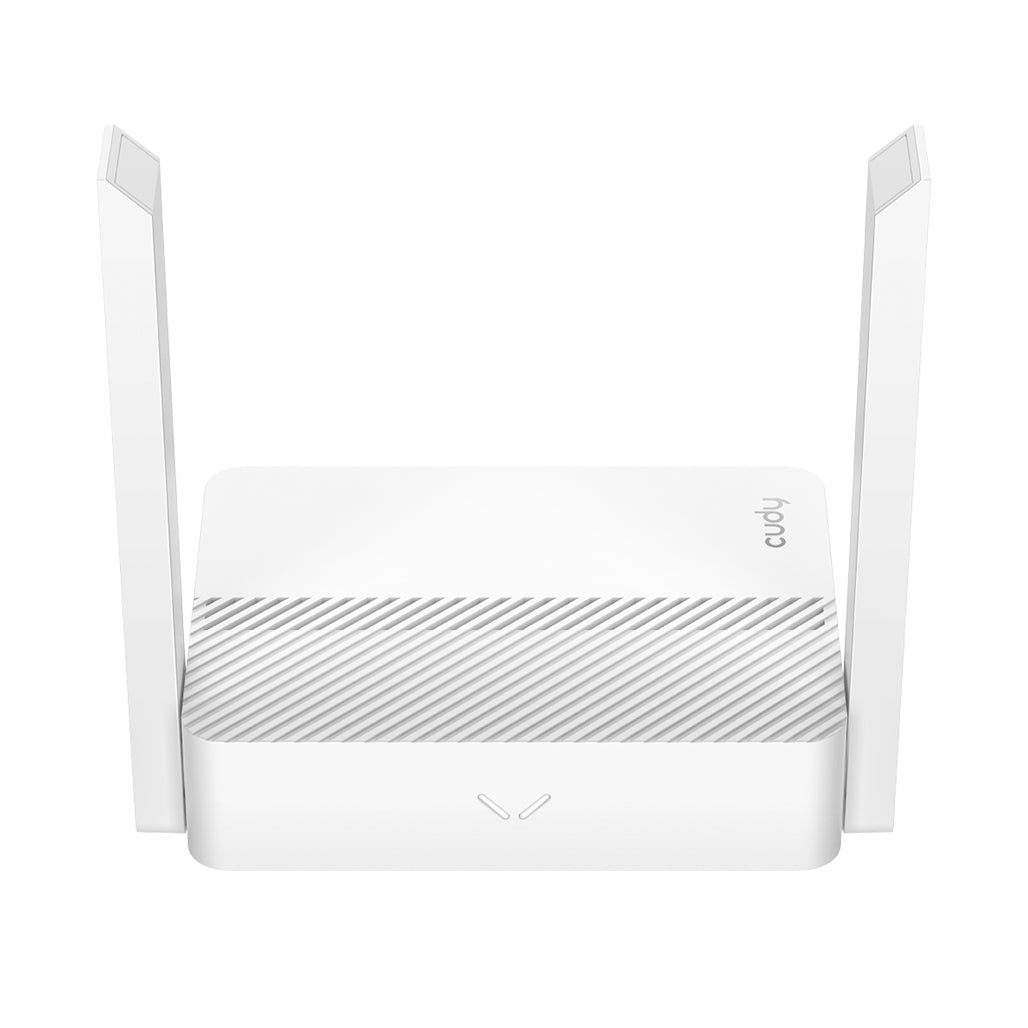

The LT300 4G WiFi router is a compact, flexible networking companion designed for easy setup in homes, offices, surveillance setups, exhibitions, and RVs. It features a single nano SIM slot and two Ethernet ports, delivering reliable 4G Cat 4 connectivity with up to 150 Mbps download and 50 Mbps upload, plus 2.4 GHz Wi‑Fi at 300 Mbps with 2x2 MIMO for solid wireless performance. Manage everything from one place with VPN Server and Client capabilities, plus the Cudy App and Cloud Control for quick setup and remote administration, making it ideal for on-the-go or semi-permanent deployments.
Designed for versatile placement, the LT300 supports multiple modes such as Cellular Router, Wi‑Fi Router, and WISP, with a WAN/LAN configurable port to expand wired networks as needed. It prioritizes security with WPA/WPA2/WPA3 and WPS, while staying practical with a compact desktop footprint, 12V 1A power, and a modest 8W max power draw. Ready to go with a bundled power adapter and Ethernet cable, it’s a reliable, easy-to-manage gateway for reliable cellular internet anywhere you need it.
Key Features
- 4G Cat 4 with up to 150 Mbps download and 50 Mbps upload
- 2.4 GHz Wi‑Fi up to 300 Mbps with 2x2 MIMO
- 1× Nano SIM Slot
- 2× 10/100 Mbps Ethernet ports with one WAN/LAN configurable port
- VPN Server and VPN Client (WireGuard/OpenVPN/L2TP/PPTP)
- Cudy App and Cloud Control for easy setup and remote management
- Multiple operation modes: Cellular Router, Wi‑Fi Router, WISP
- WPA/WPA2/WPA3 security with WPS
- Low power desktop design, max 8W
- Range up to 100 m in open space
Specifications
- Model Version: LT300 2.0
- CPU: 580 MHz single-core
- Memory/Storage: 64 MB RAM, 8 MB flash
- Cellular: 4G Cat 4; DL up to 150 Mbps; UL up to 50 Mbps; DL 2x2 MIMO; Antennas: 2 fixed; SIM: 1× Nano SIM
- Cellular Bands: EU Version — LTE-FDD B1/3/5/7/8/20/28; LTE-TDD B38/40/41; WCDMA B1/5/8; CN Version — LTE-FDD B1/3/5/8; LTE-TDD B34/38/39/40/41; WCDMA B1/5/8; GSM B3/8
- Wireless: 2.4 GHz Wi‑Fi 300 Mbps; 2x2 MIMO; 2.4 GHz internal antennas; Range up to 100 m; Wi‑Fi Standard: Wi‑Fi 4; 64‑QAM; Channel Width: 40 MHz; Security: WPA/WPA2/WPA3; WPS True

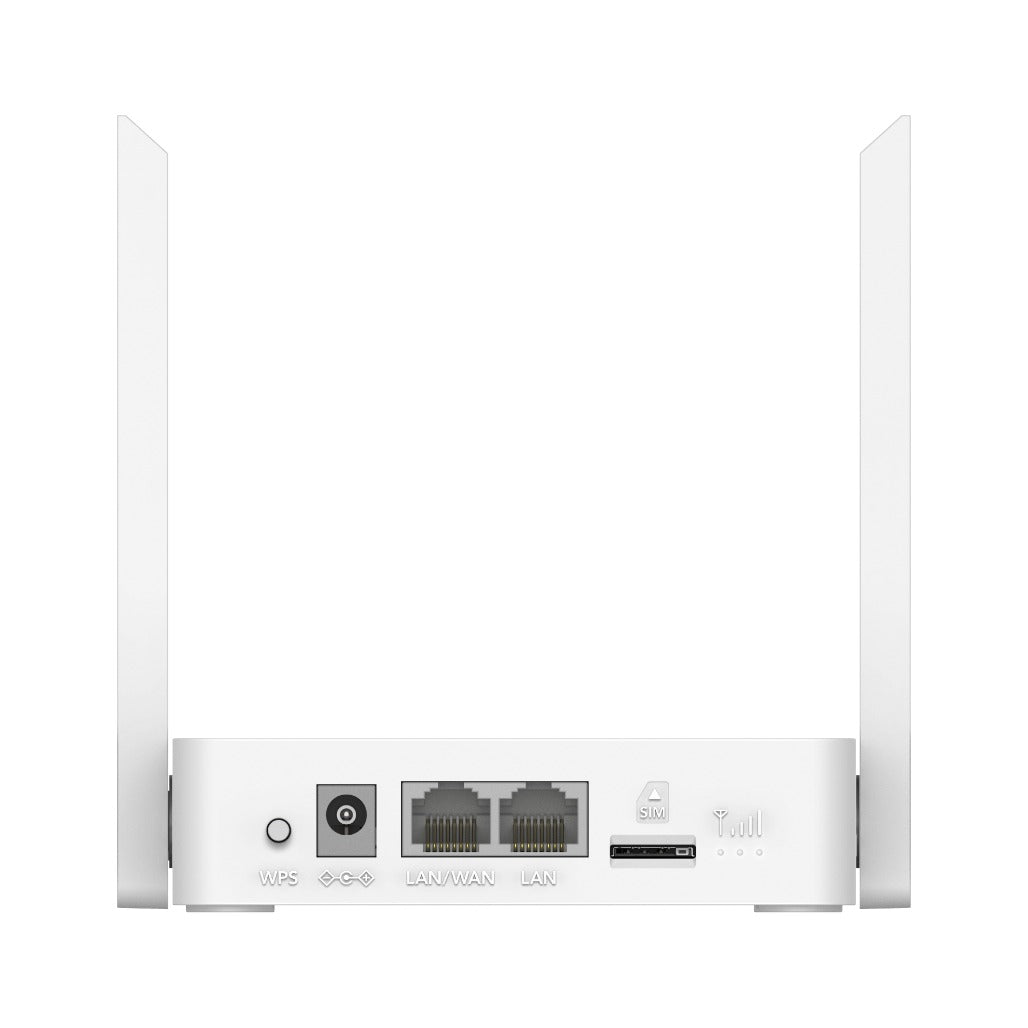

- Interfaces: 2× 10/100 Mbps RJ45; WAN/LAN configurable port
- Power: 12V DC 1A; Power Adapter: 100-240V AC to 12V DC; Max 8W; Idle 3W
- Environment: Operating 0–40 °C; Storage -40 to 70 °C; Humidity 10%–90% non-condensing
- Certifications: FCC, CE
- Dimensions: 118×80×27.5 mm; Weight 172.2 g

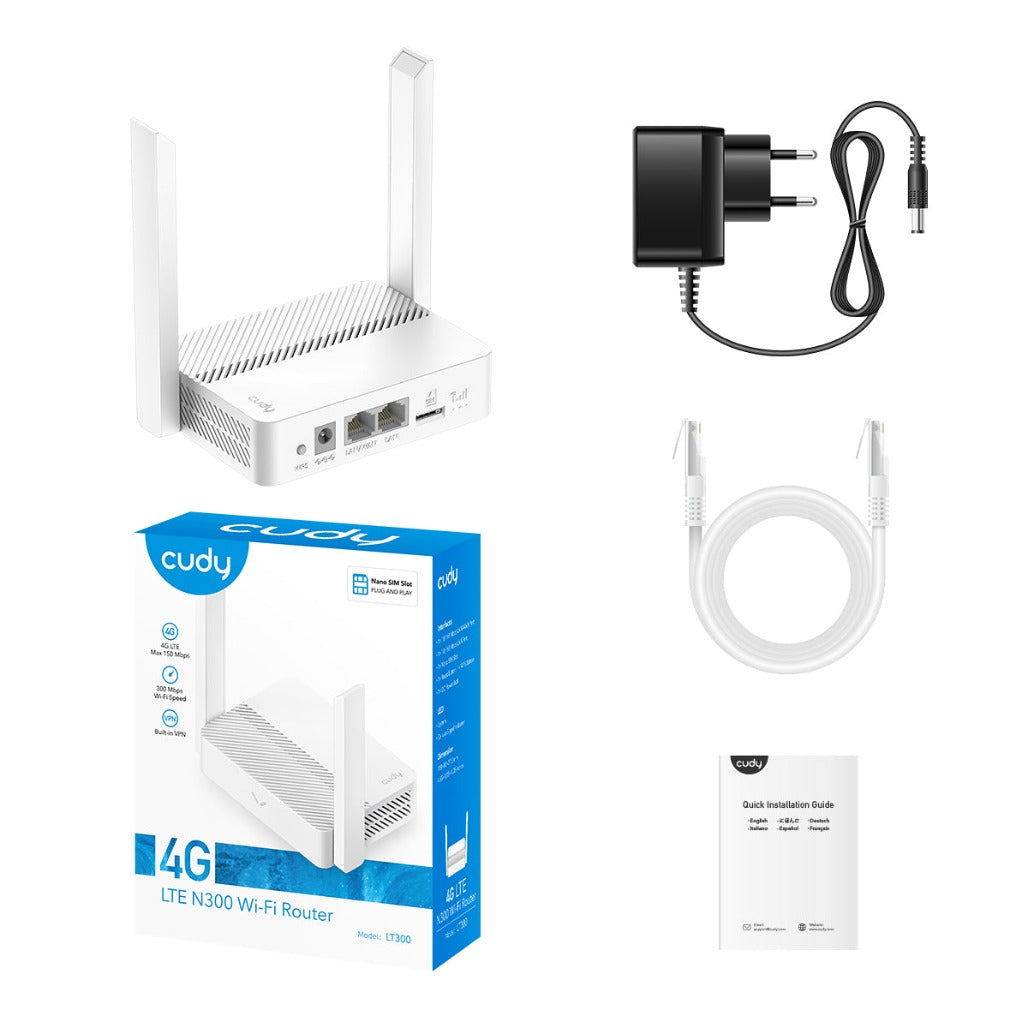

- Package Contents: LT300; Power Adapter; Ethernet Cable; Installation Guide
