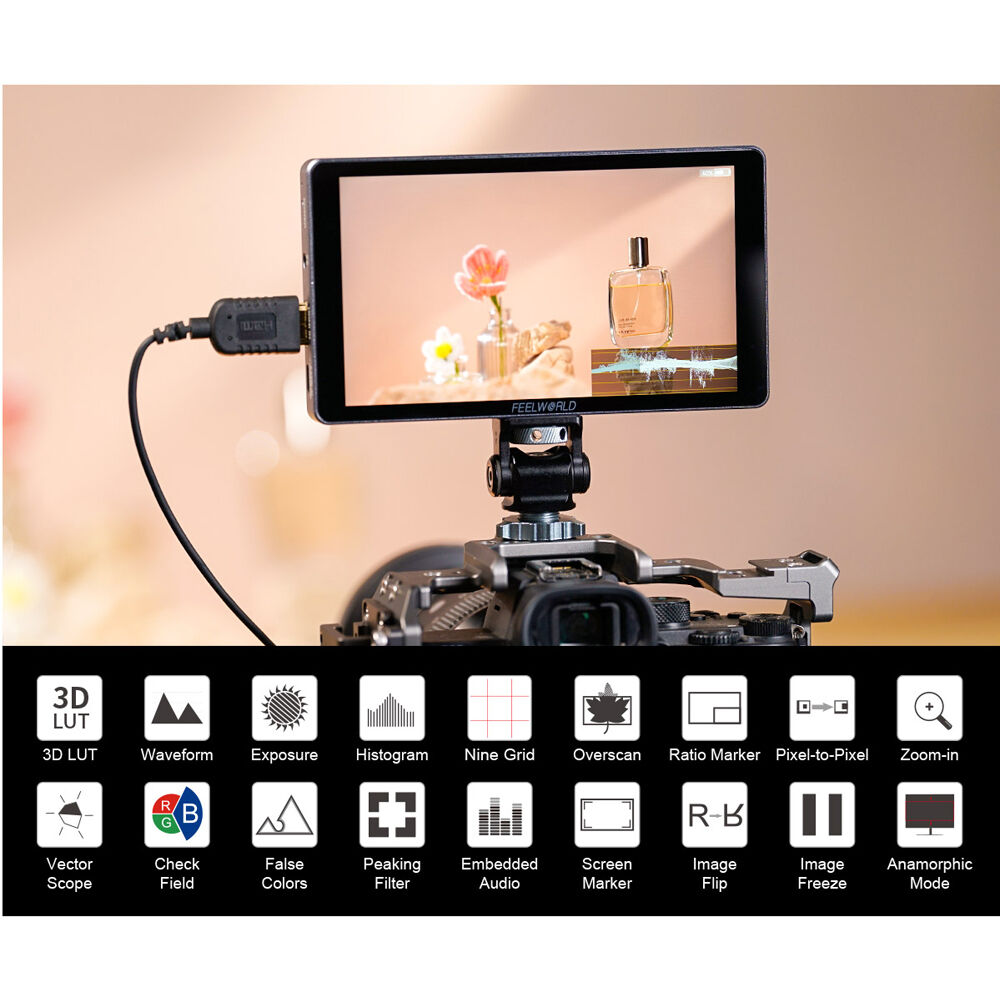

The P6XL includes advanced monitoring tools such as focus and exposure assist and accurate waveform monitoring with RGB parade, YUV parade, vector scope, and histograms. It also supports anamorphic de-squeeze, screenshot and image overlay capability for composition, and various image controls including image freeze and pixel-to-pixel zoom. For on-set convenience, it includes a mini shoe mount adapter and supports tripod/accessory mounting with a bottom anti-twist 1/4"-20 female mount. Power is handled by a built-in 22.2Wh battery for up to two hours of runtime at maximum brightness, with USB-C charging for extended use. Connectivity and monitoring options include a 3.5mm headphone jack and HDMI 1.4 input for audio and video monitoring.
Key Features

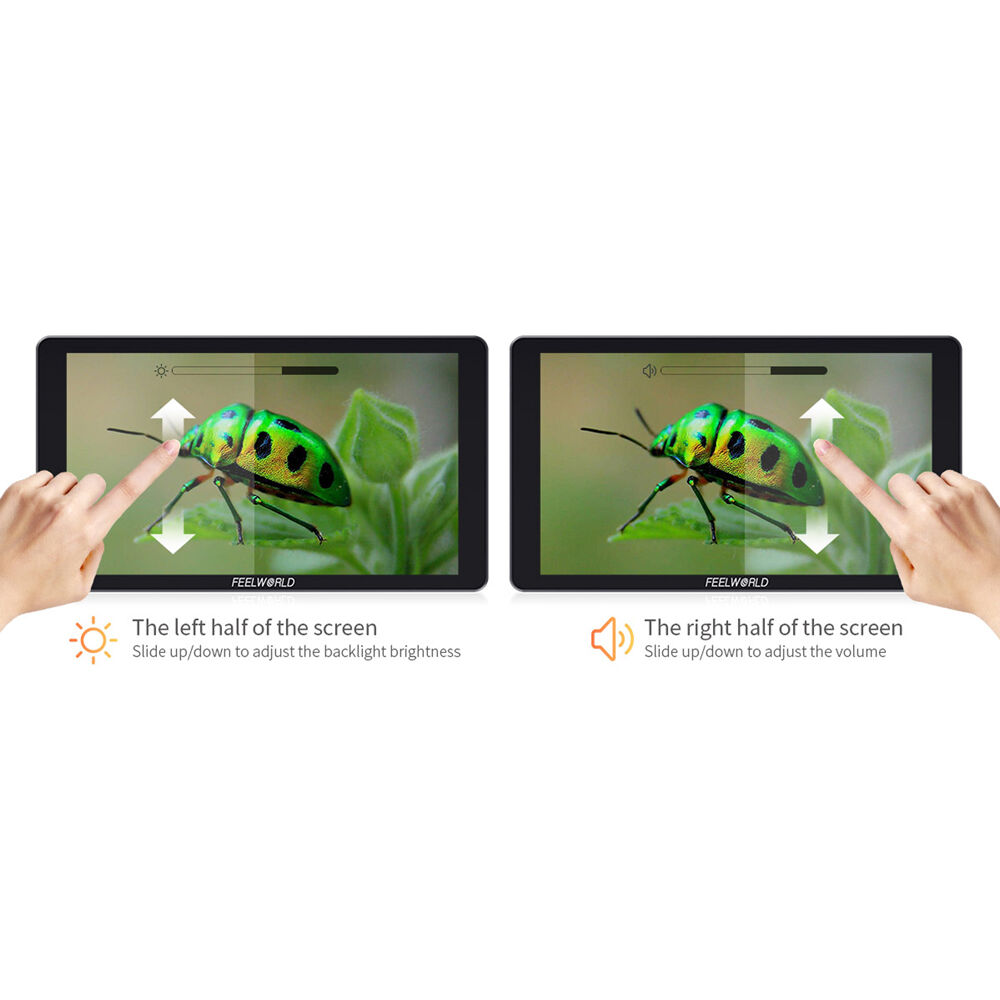

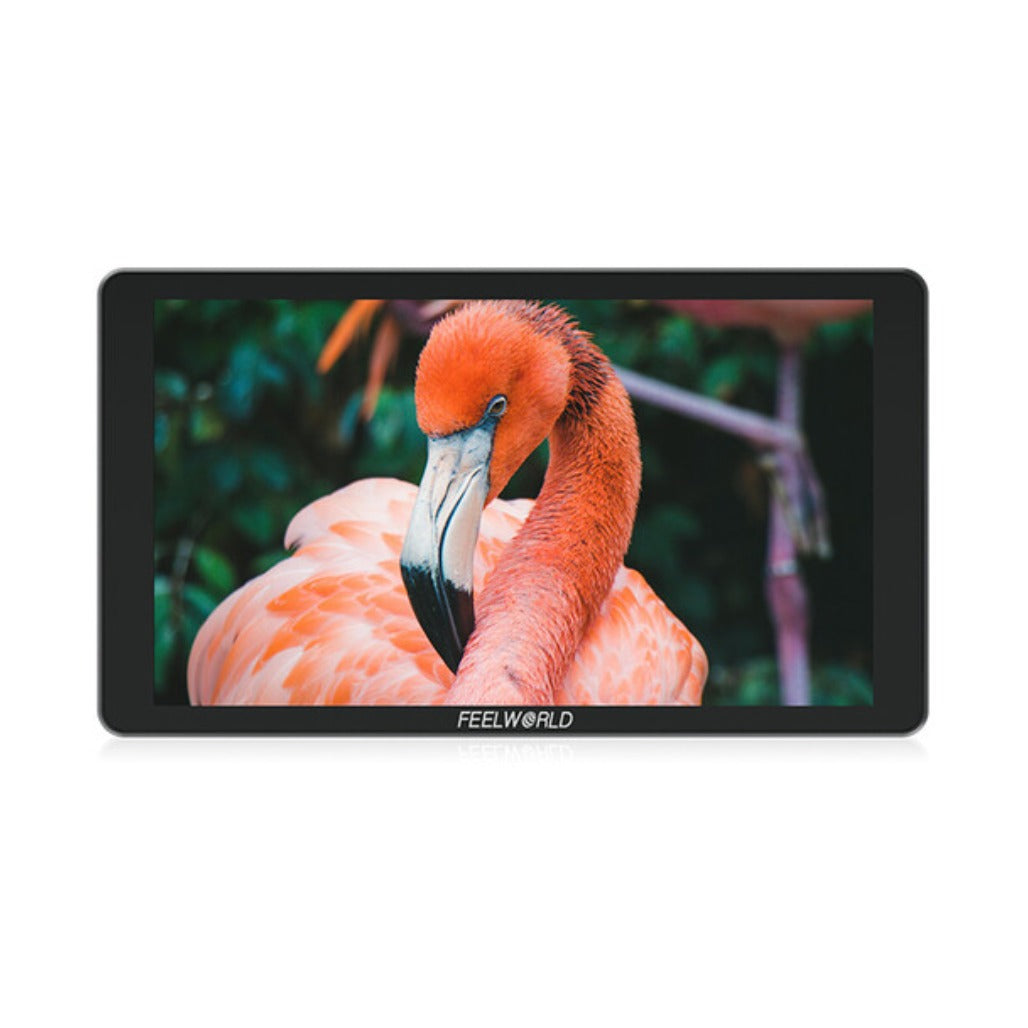

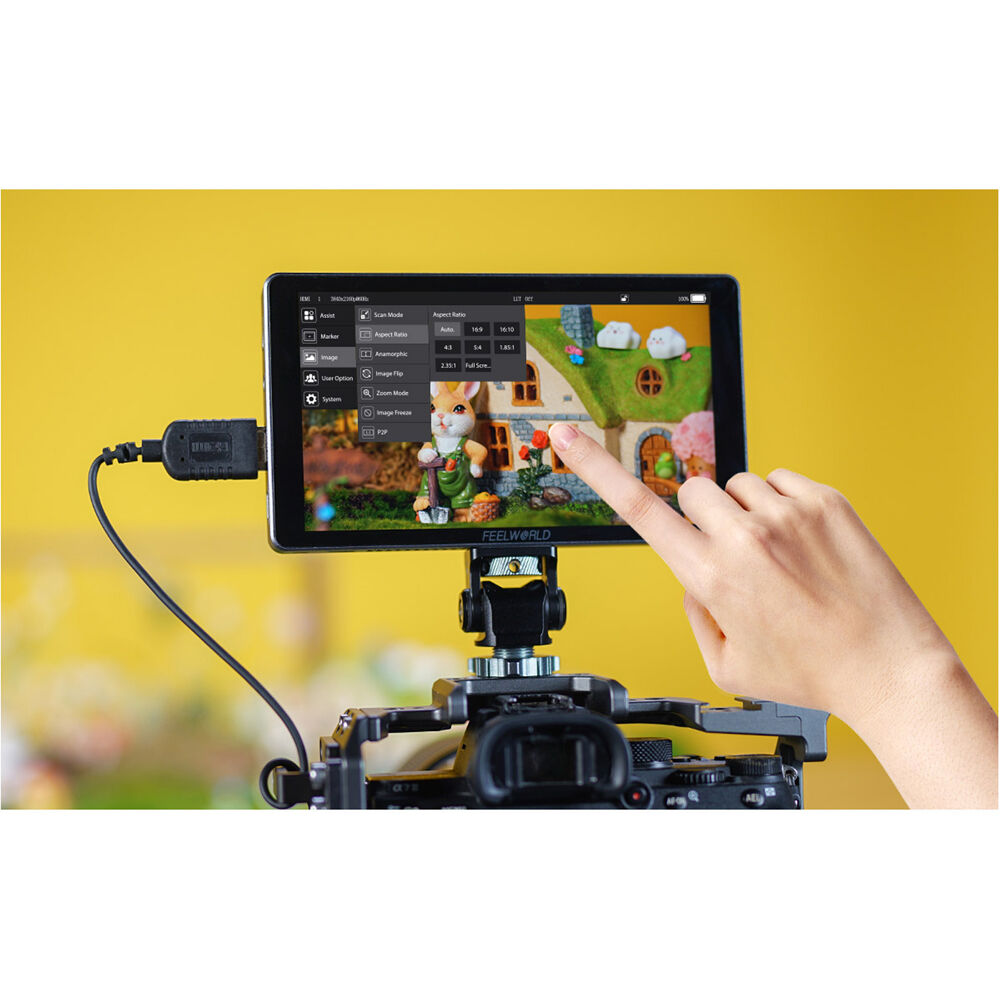

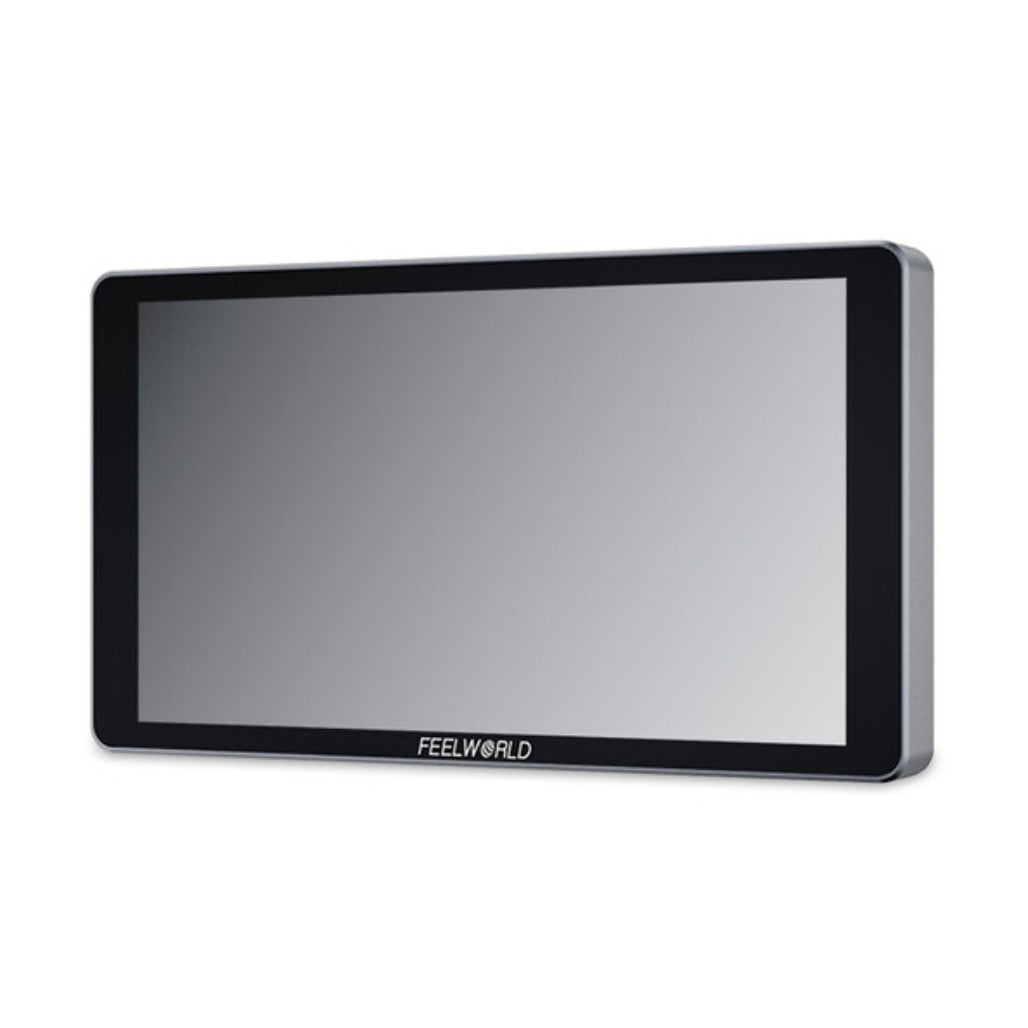

• 6" HDR IPS touchscreen with 1920 x 1080 resolution

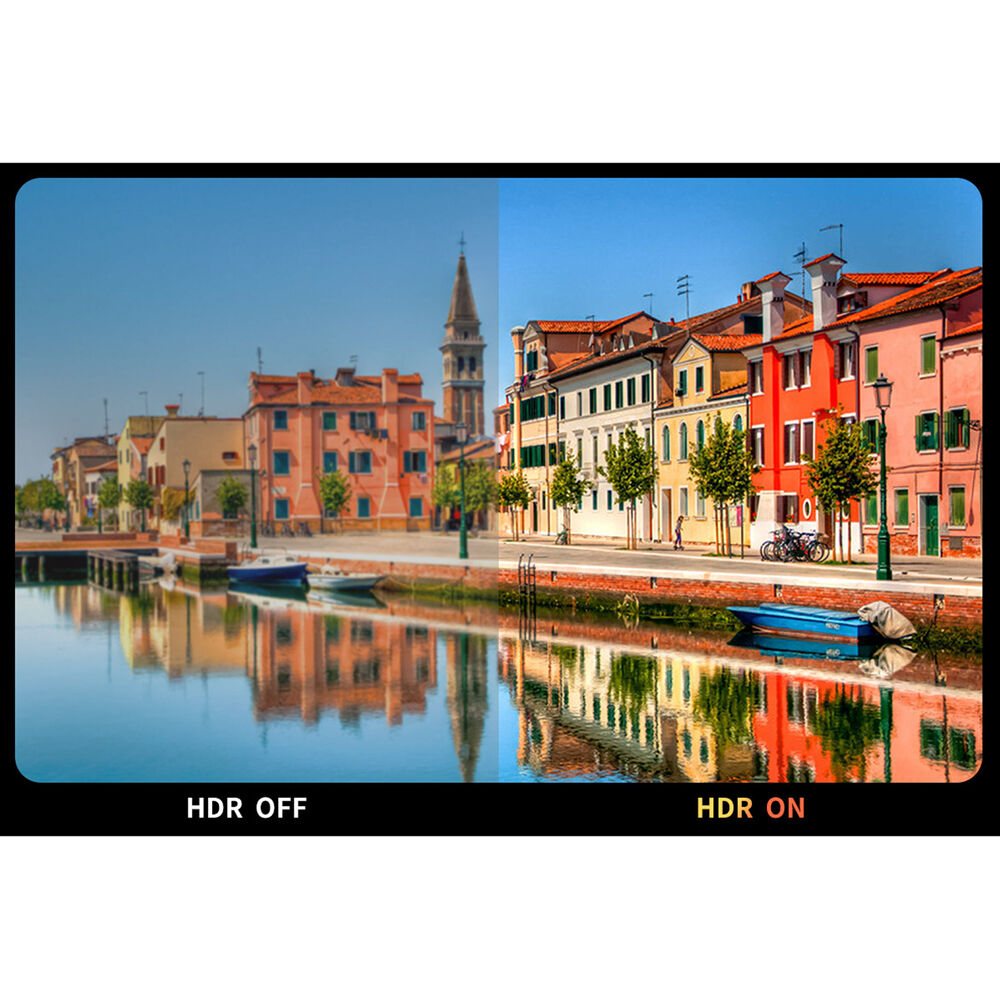

• HDR support with HLG1, HLG2, and HLG3 modes

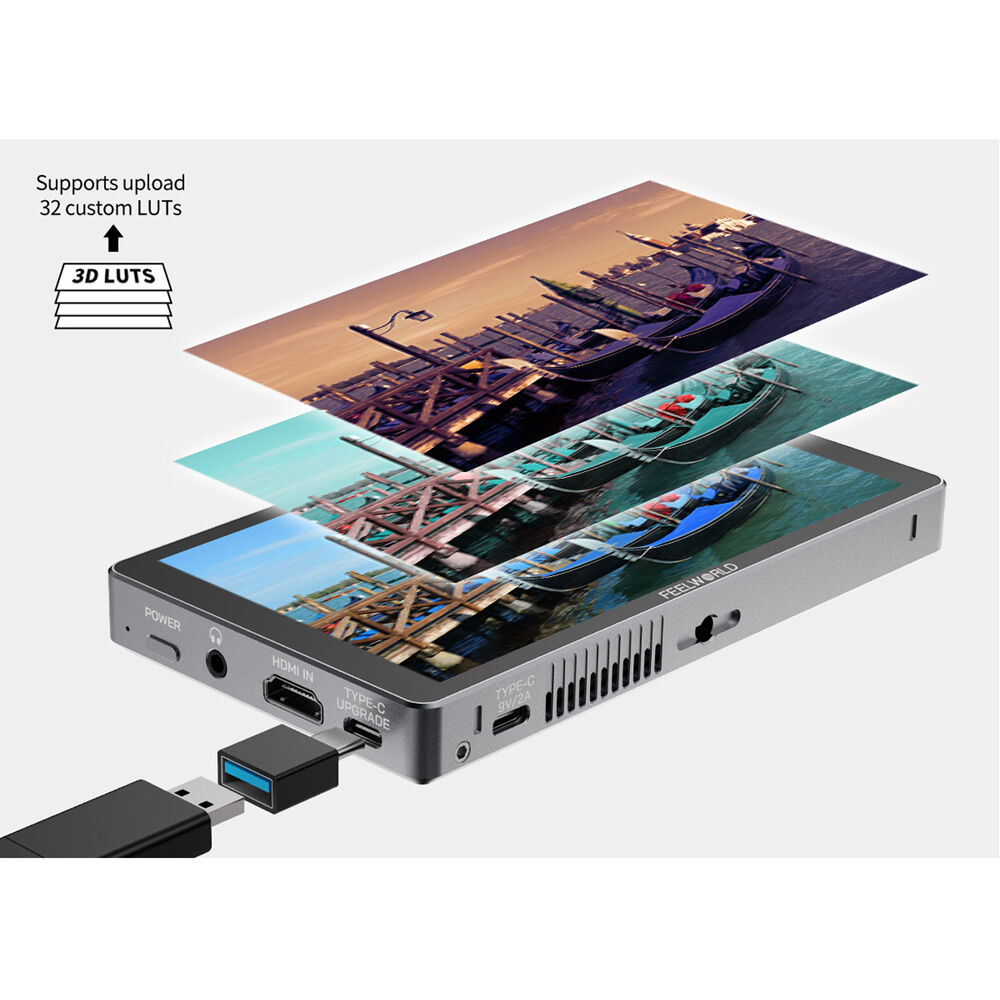

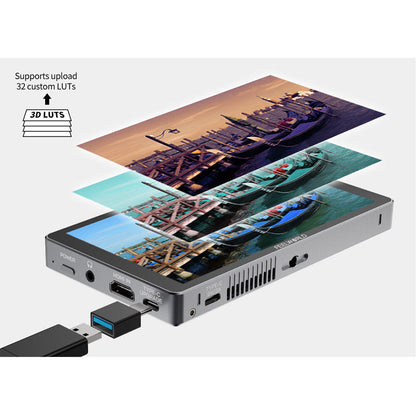

• Custom 3D-LUT support (up to 32 .cube files) via USB flash drive
• Focus and exposure assist

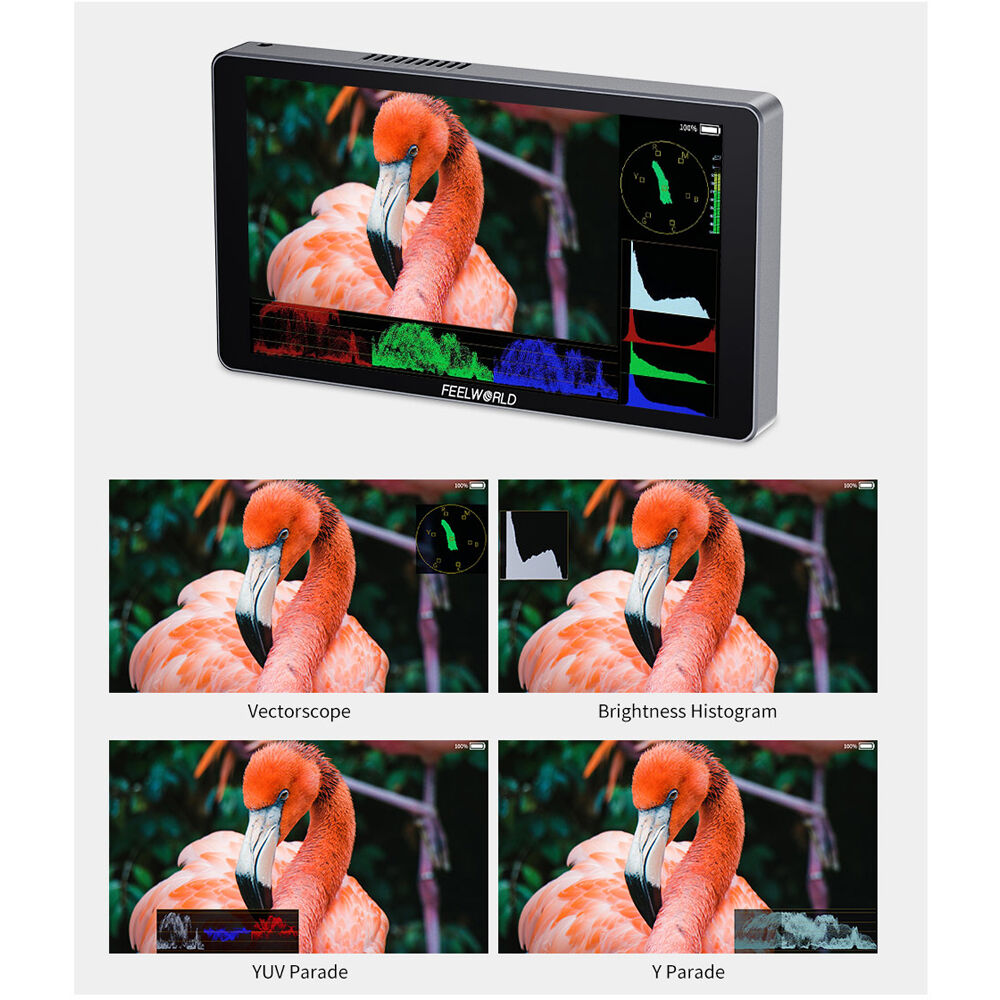

• Accurate waveform monitoring, including RGB parade, YUV parade, vector scope, and histograms
• De-squeeze images from anamorphic lenses or adapters

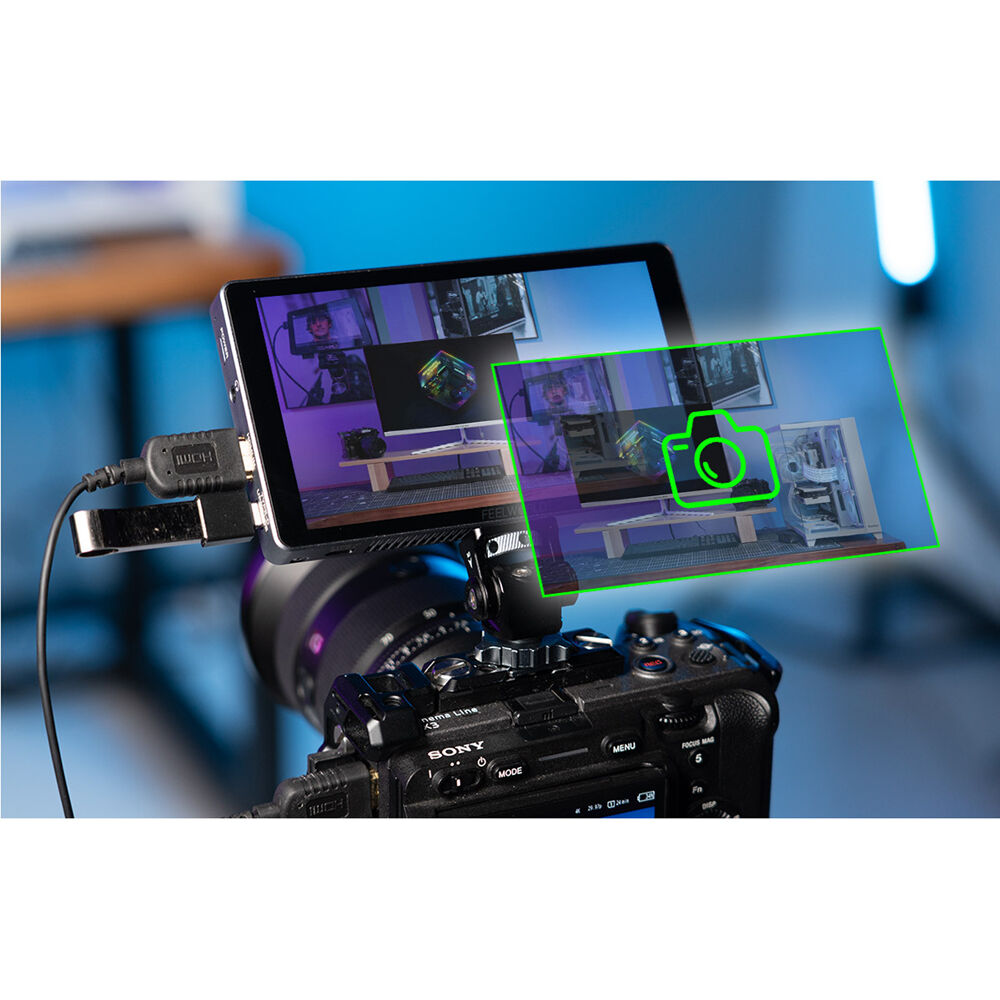

• Screenshot and image overlay capability for composition

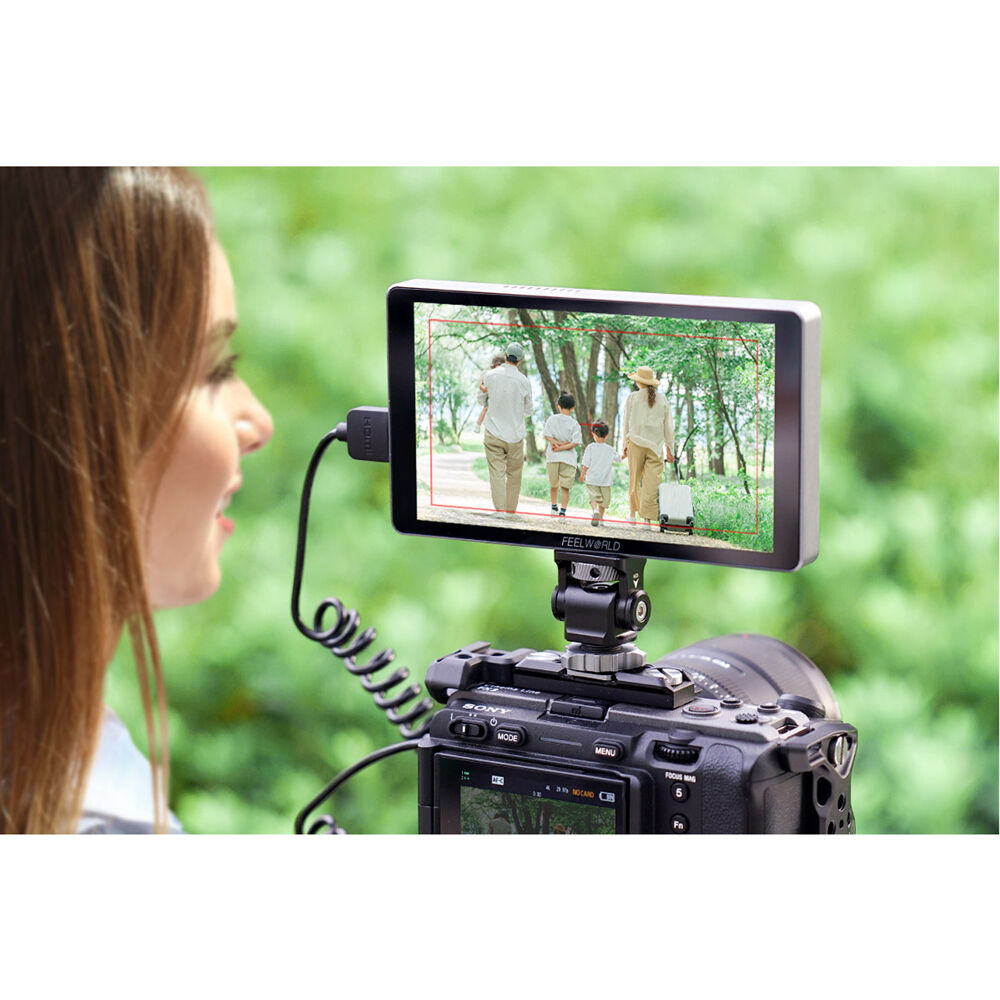

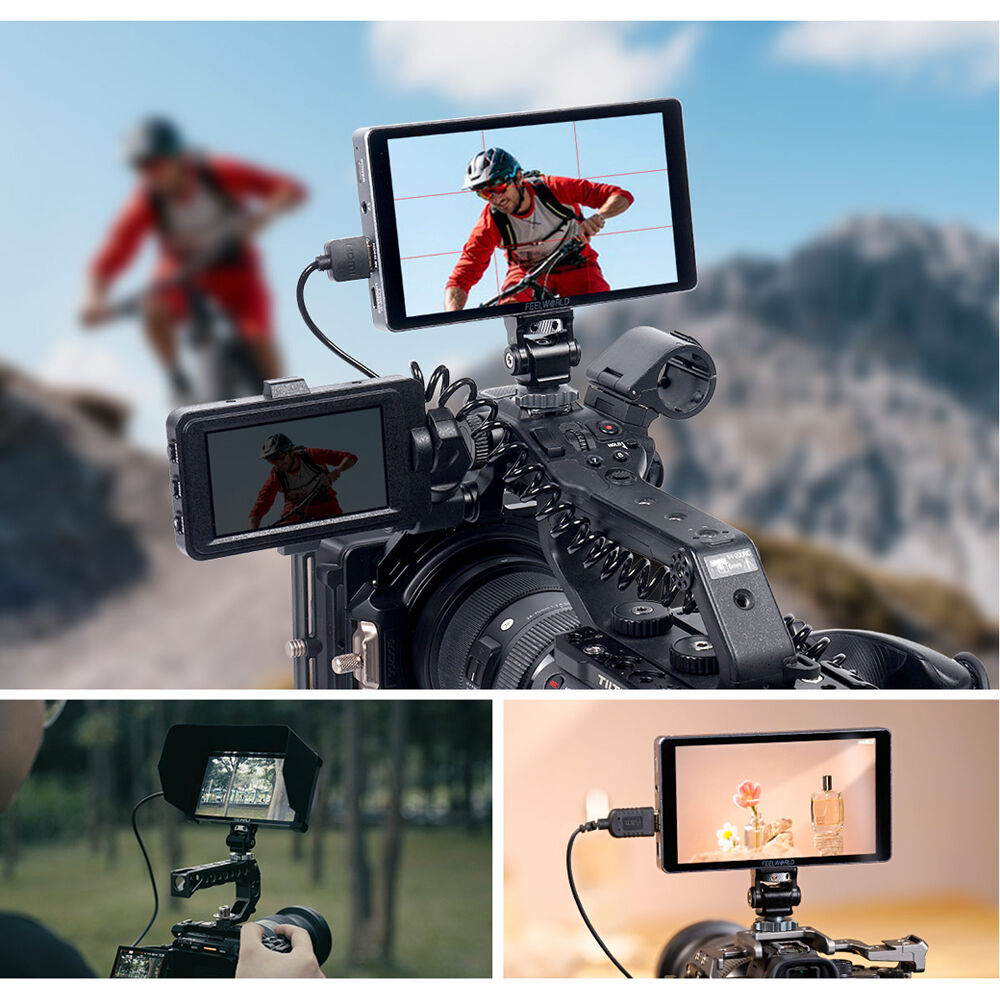

• Includes mini shoe mount adapter for easy camera attachment

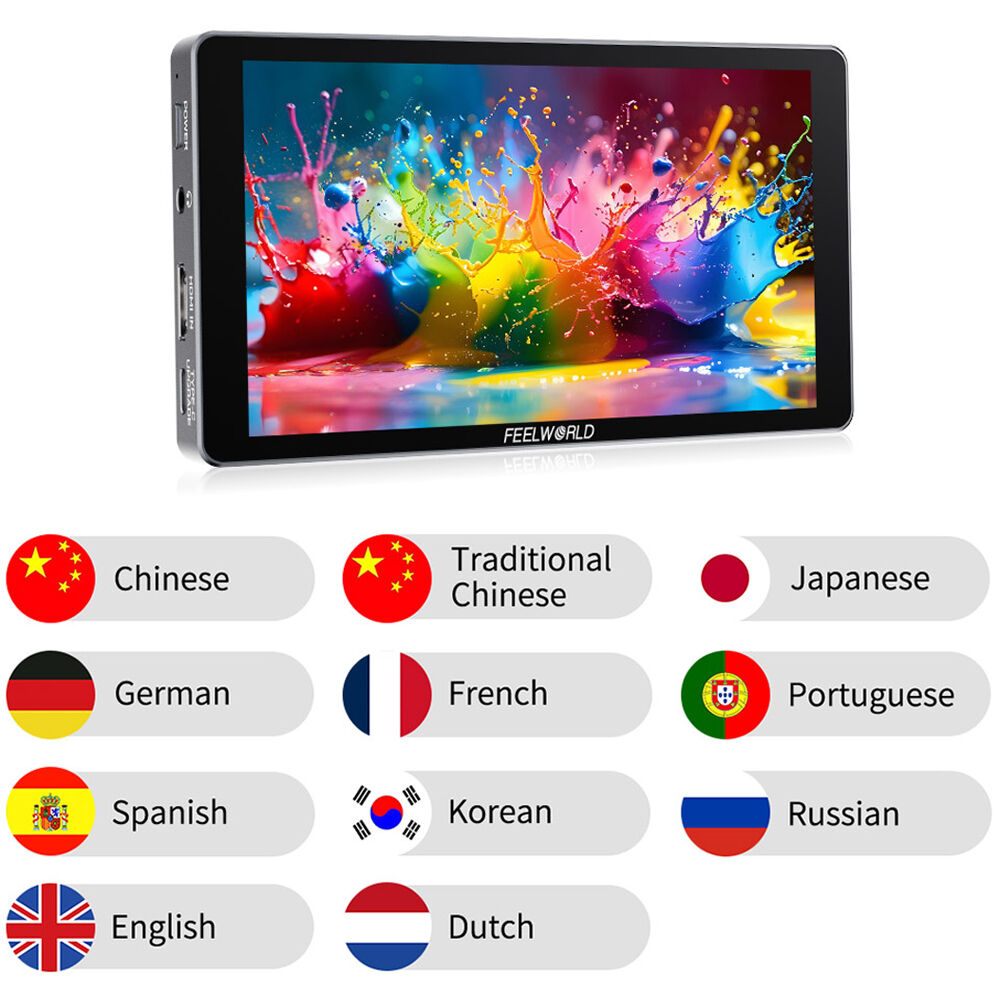

• Supports up to 11 languages
• 1200-nit brightness (as stated in the original description)
• Built-in speaker

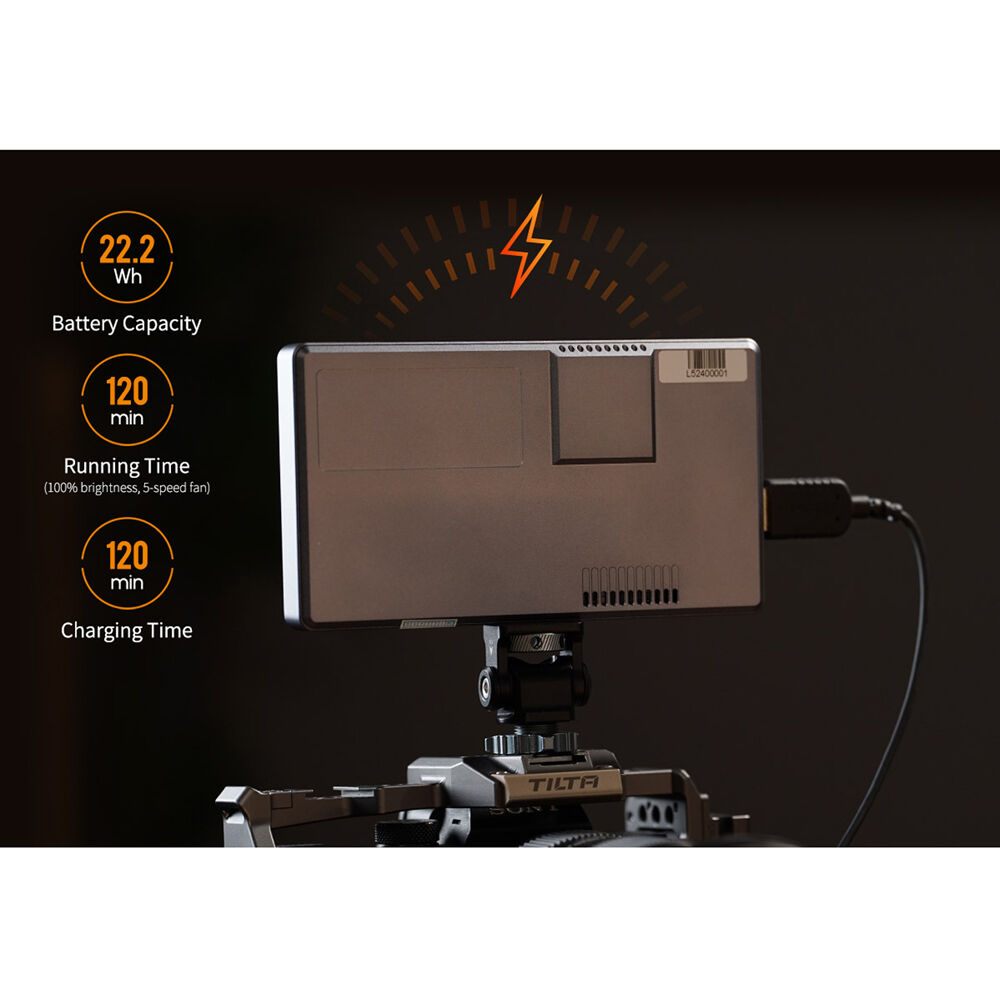

• Built-in 22.2Wh battery provides 2 hours of runtime at maximum brightness

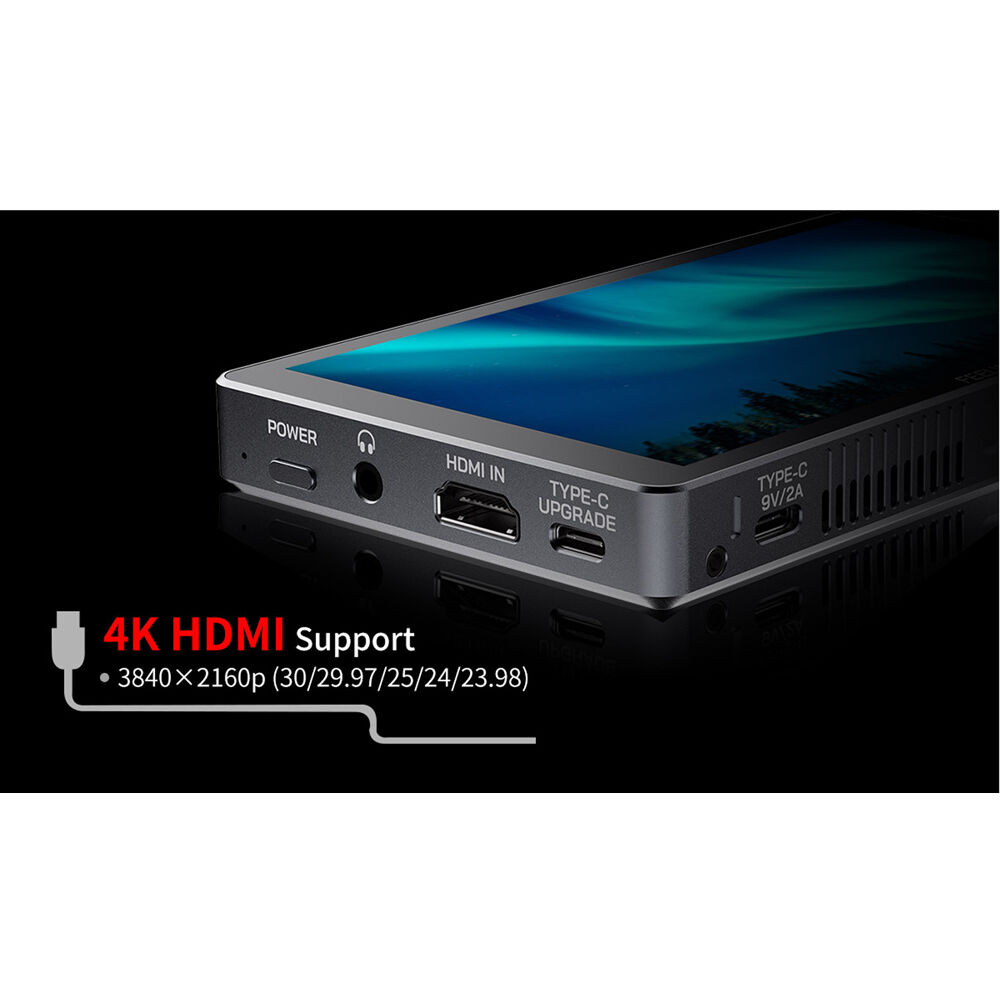

• 4K HDMI input (as stated in the original description)
• 3.5mm headphone jack
Specifications

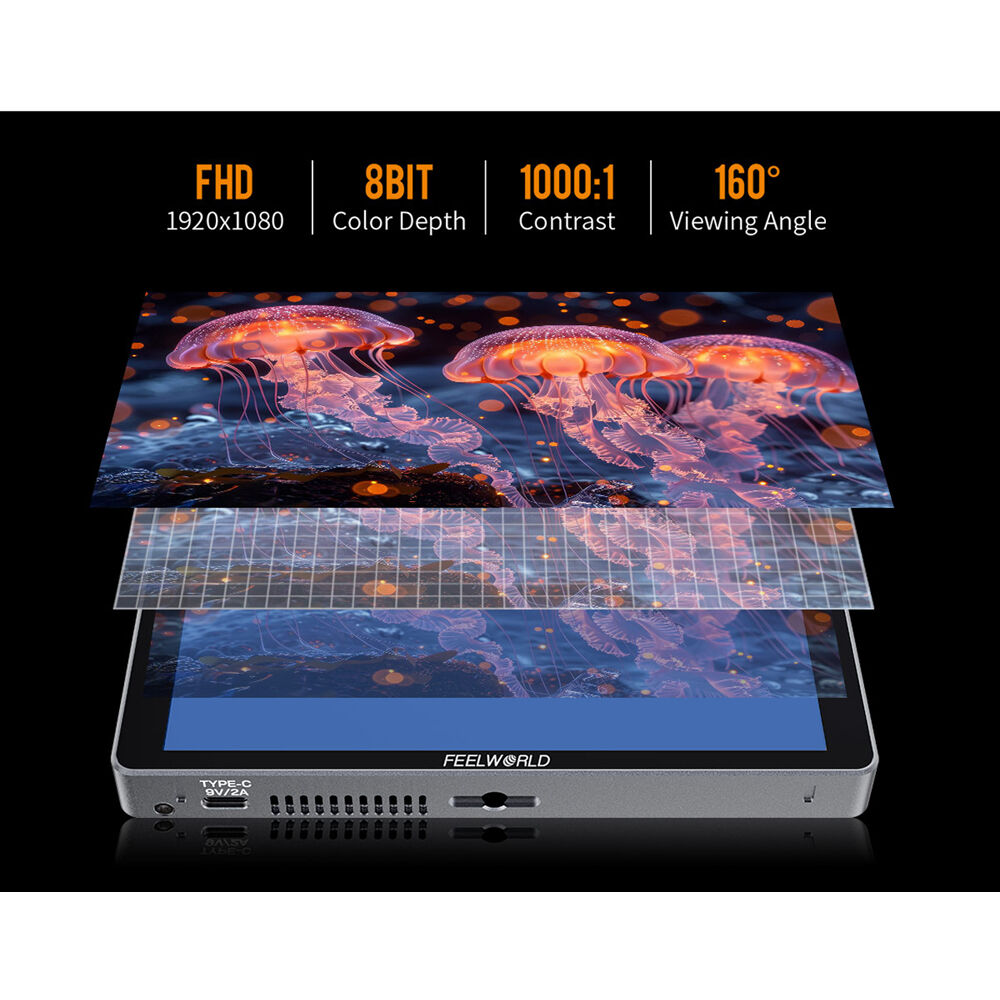

• Native Resolution: 1920 x 1080
• Touchscreen: Yes
• HDR Support: Hybrid Log Gamma (HLG1, HLG2, HLG3 modes)
• Custom 3D-LUT support: up to 32 .cube files via USB flash drive
• Panel Type: IPS-Type LCD
• Aspect Ratio: 16:9
• Viewing Angle: Horizontal: 160° (80/80); Vertical: 160° (80/80)
• Maximum Brightness: 1000 nits / cd/m2
• Contrast Ratio: 1200:1
• LUT Support: Yes

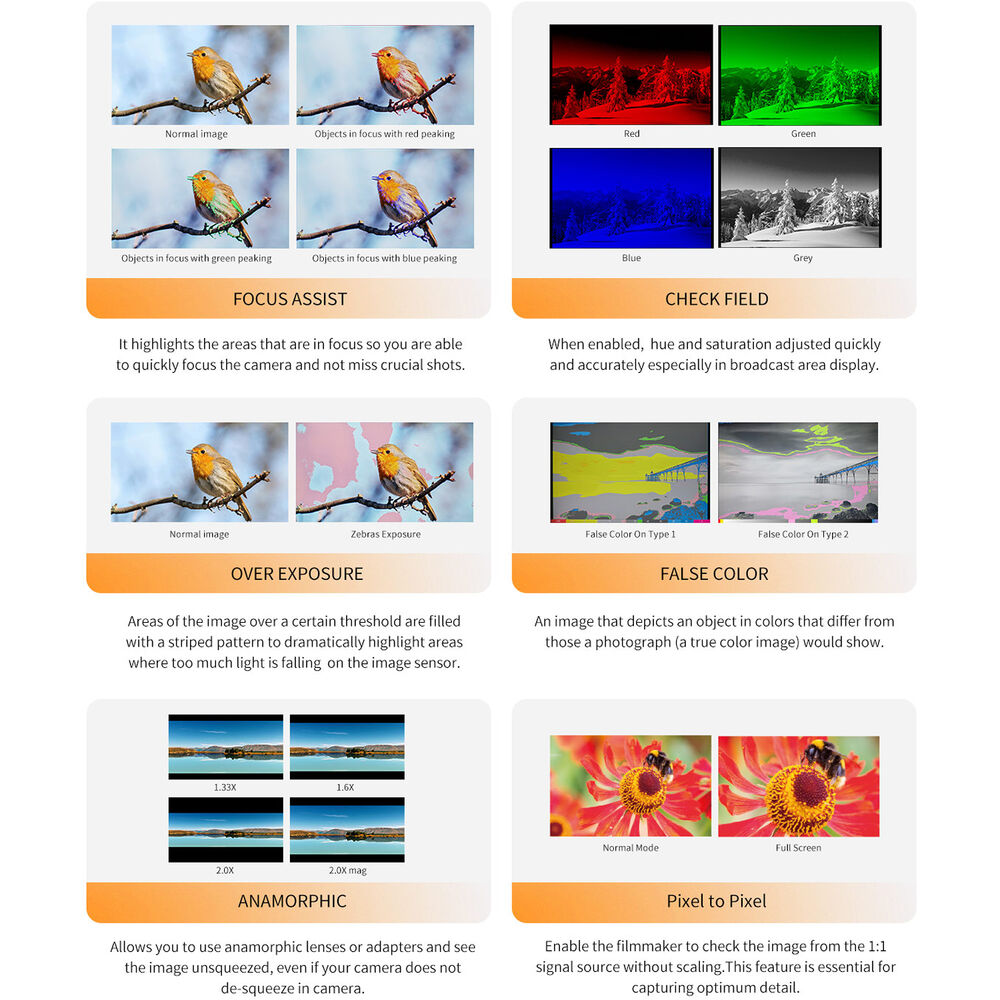

• Image Controls: Anamorphic De-Squeeze, Check Field, False Color, Focus Assist, Histogram, Image Flip, Image Freeze, Overscan, Pixel-to-Pixel Zoom, Screen Markers, Vectorscope, Waveform, Zebra
• Display Size: 6.0" / 15.2 cm

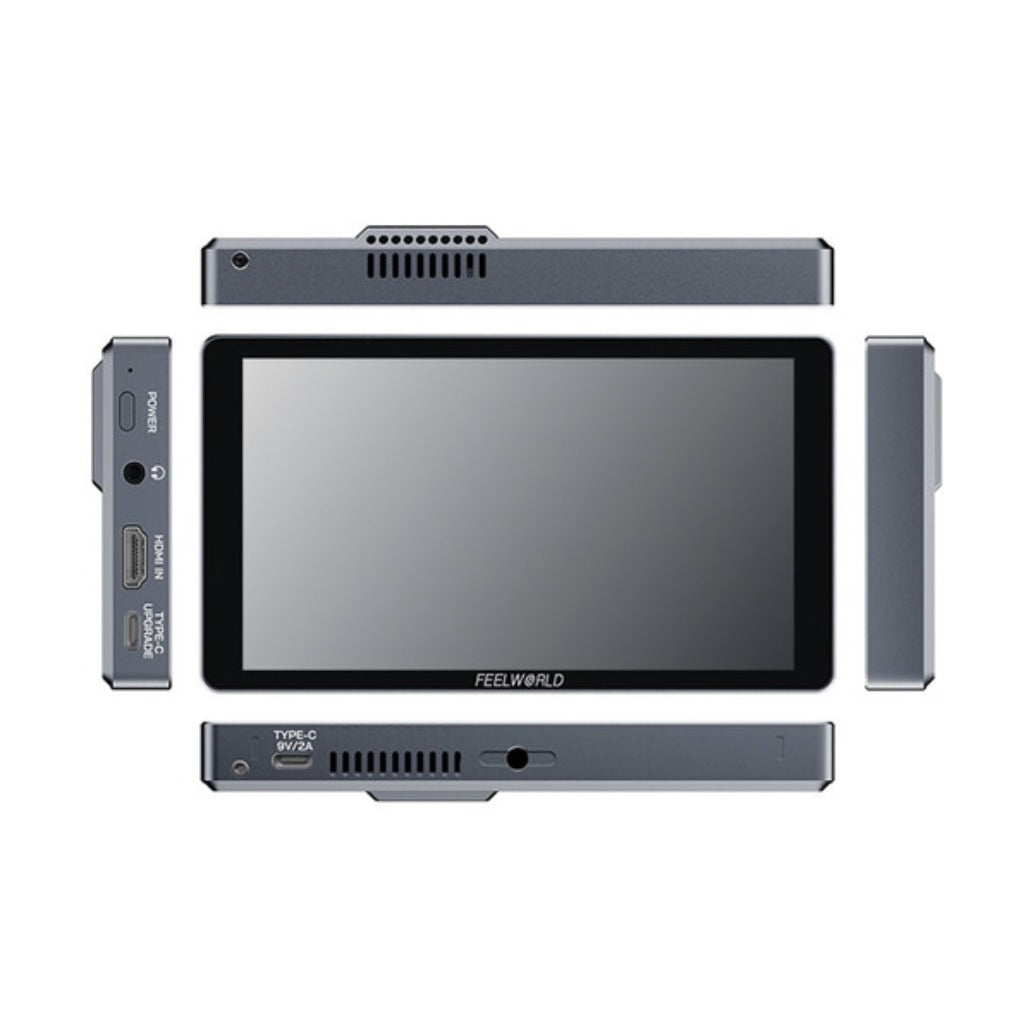

• HDMI Video I/O: 1x HDMI 1.4 Input
• Video Format: HDMI (1080p: 60/59.94/50/30/29.97/25/24/23.98; 1080i: 60/59.94/50; 720p: 60/59.94/50/30/29.97/25/24/23.98; 576p; 576i; 480p; 480i)
• Embedded Audio: Yes
• Audio I/O: Built-In Speaker
• Audio Output: 1x 1/8" / 3.5 mm Headphone Output
• Other I/O: 1x USB-C (Firmware/LUT Upload)

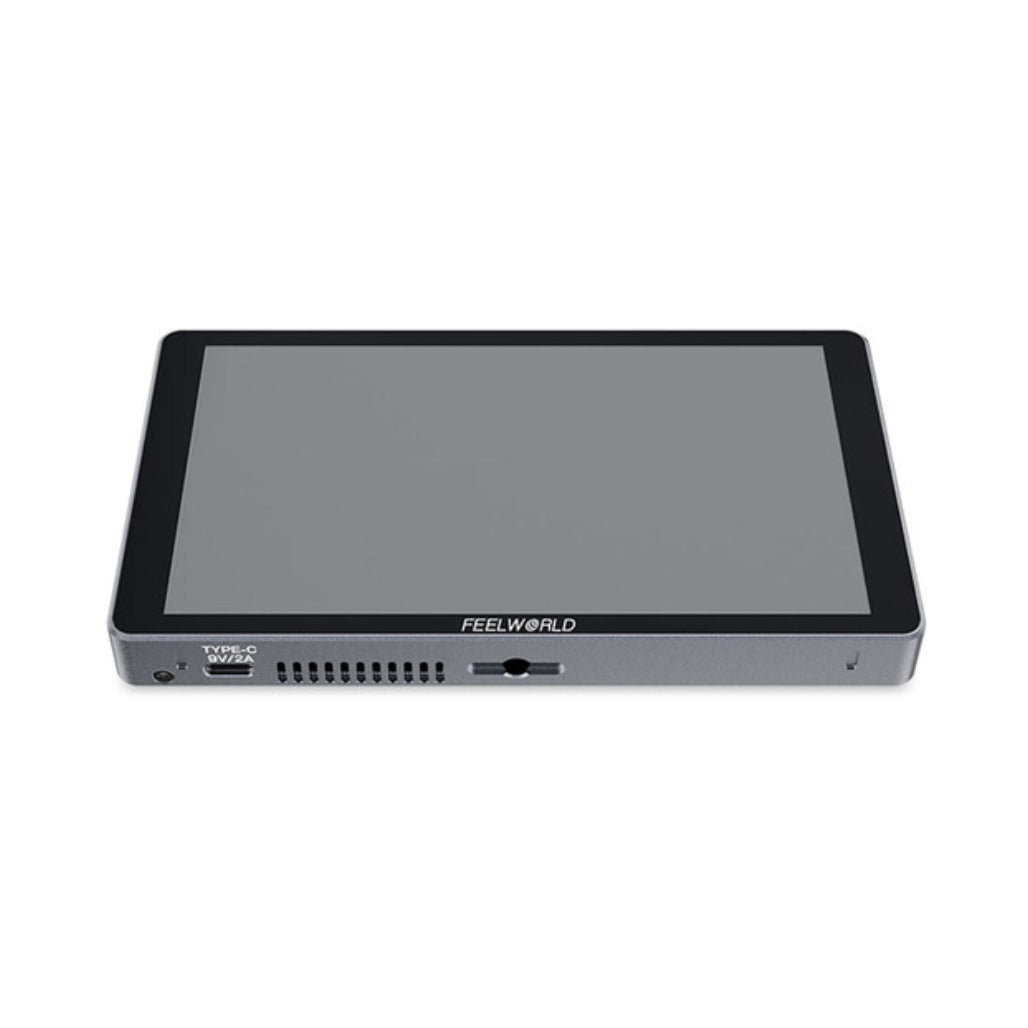

• Power I/O: 1x USB-C (9 VDC / 2 A) Input
• Power Consumption: 9 W (Typical)
• Mobile App Compatible: Not specified
• Battery: Built-in 22.2Wh battery
• Input Power: 9 VDC at 2 A

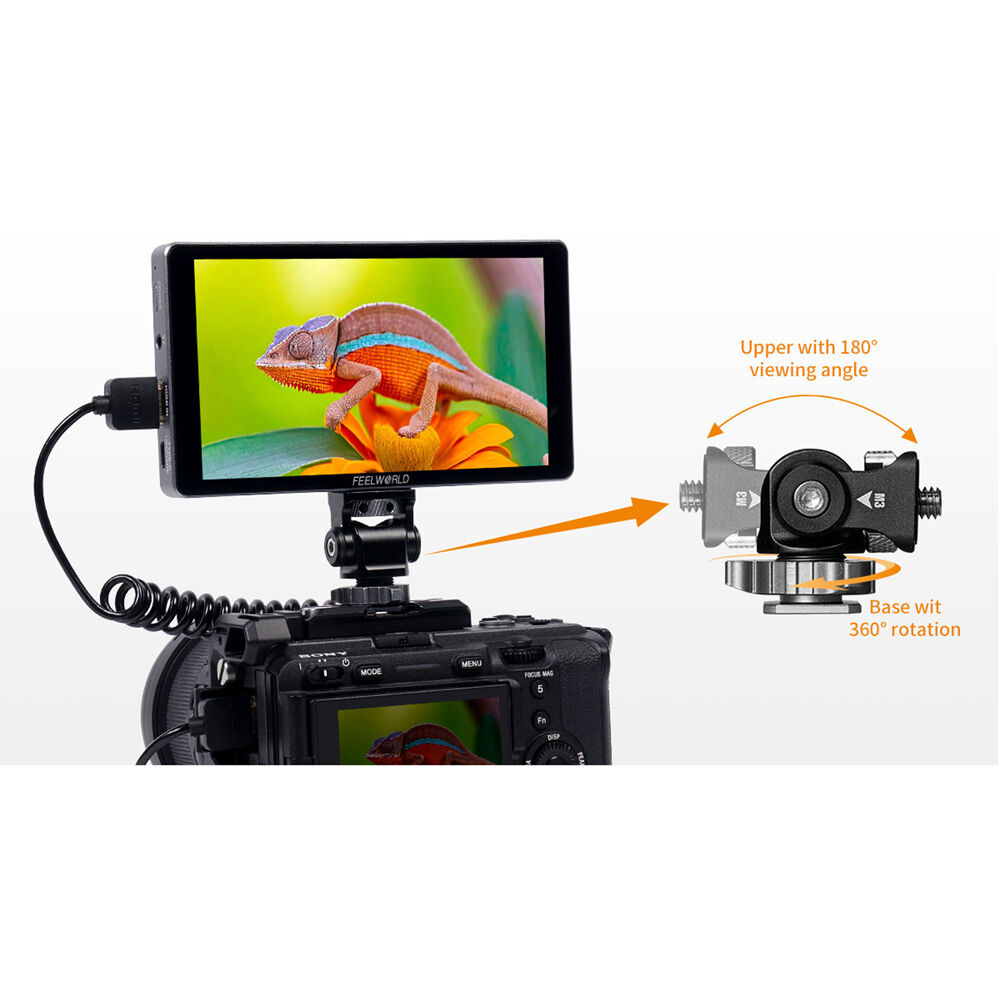

• Mounting: Tripod/Accessory Mounting, Bottom
• Anti-Twist Mount: 1x Anti-Twist 1/4"-20 Female
• Operating Conditions: -4 to 158°F / -20 to 70°C
• Storage Conditions: -22 to 176°F / -30 to 80°C

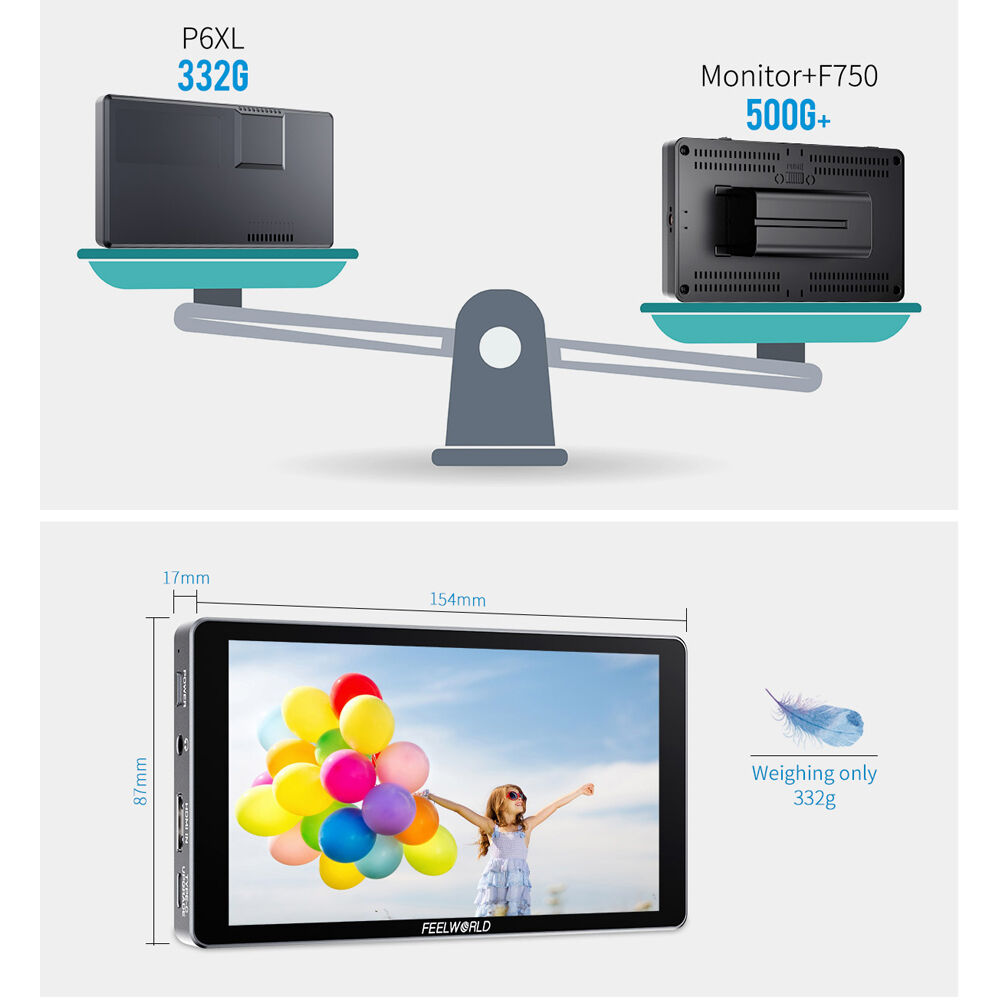

• Dimensions: 6.1 x 3.4 x 0.7" / 154 x 87 x 17 mm
• Weight: 11.7 oz / 332.00 g
• Packaging Info: 9.6 x 7.2 x 5"
• Box Dimensions (LxWxH): Not specified
• Package Weight: 2.075 lb
• Wireless: Wi-Fi (listed), Bluetooth (listed)
• UHD 4K format support: 30/29.97/25/24/23.98
• Includes mini shoe mount adapter: Yes
• Media/Memory Card Slot: No
• Screenshot and image overlay capability: Yes
