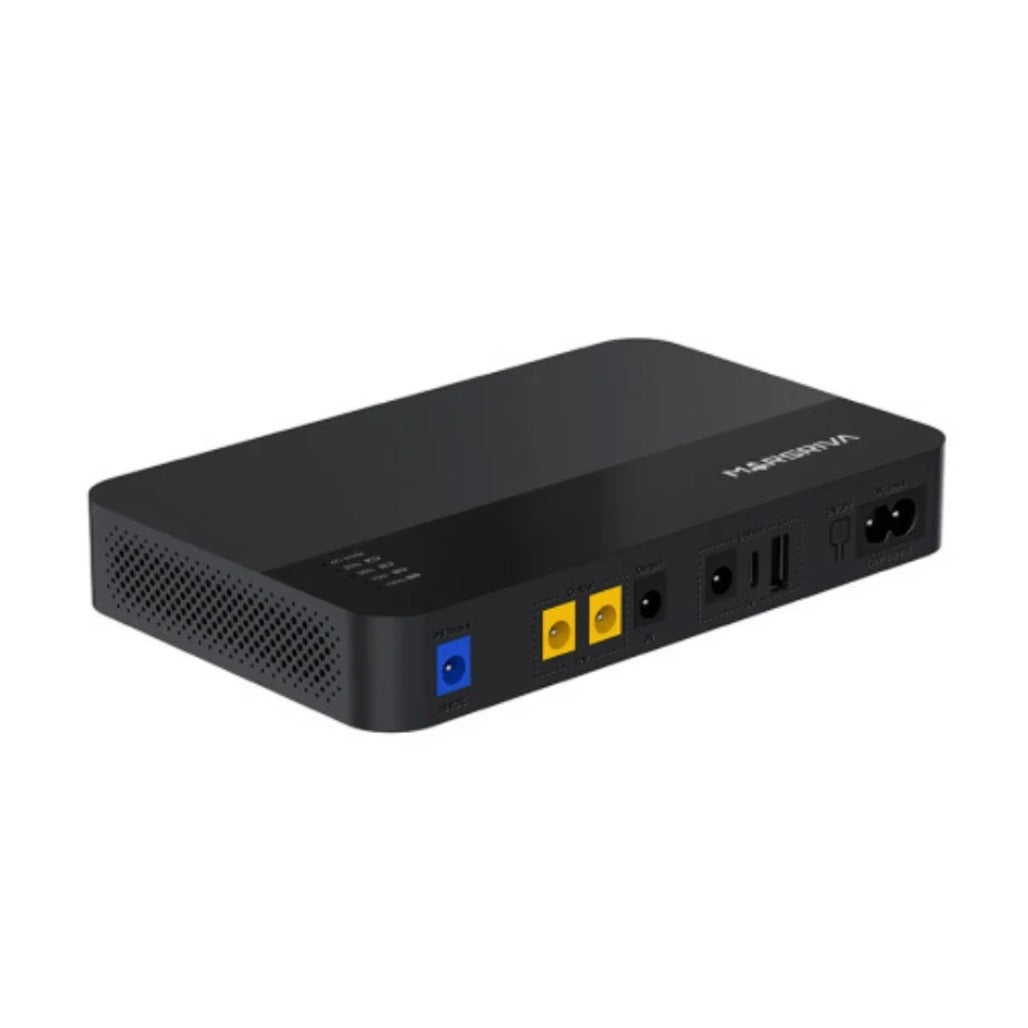

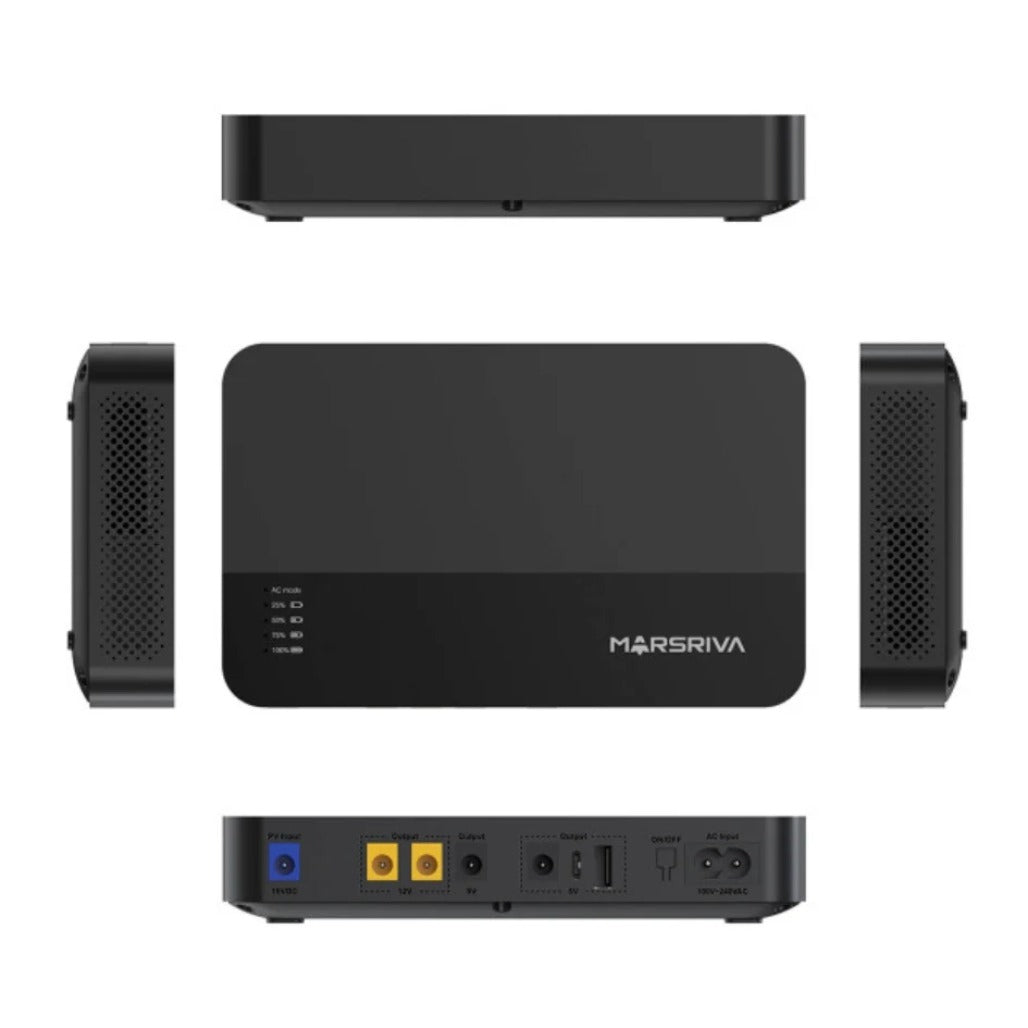

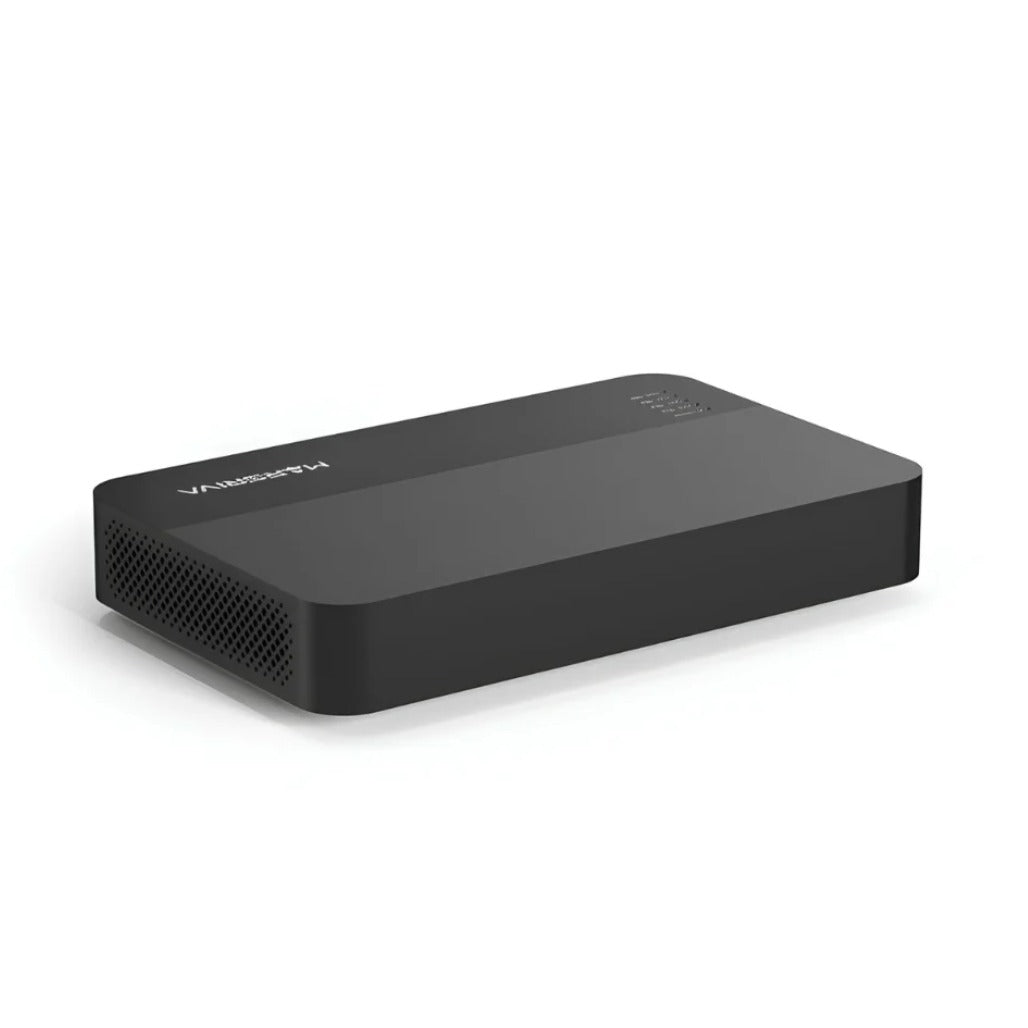

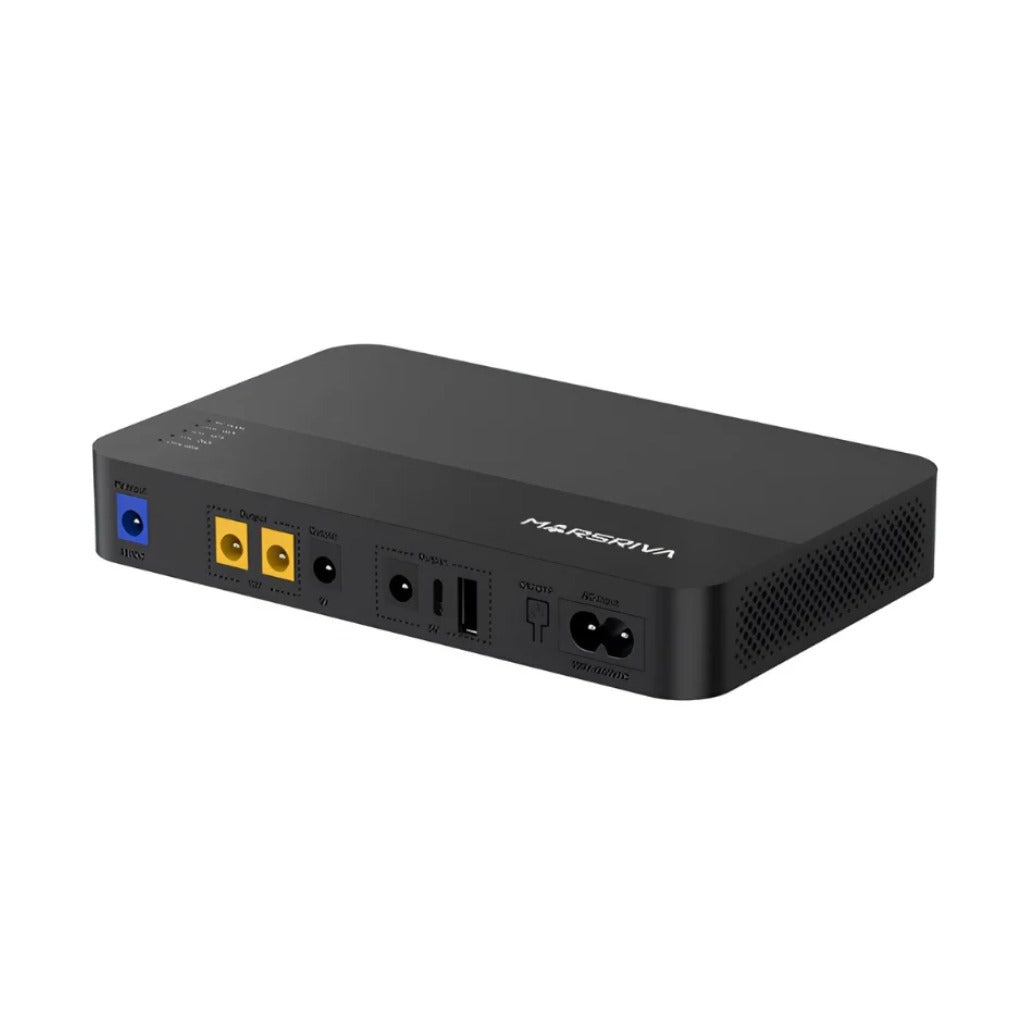

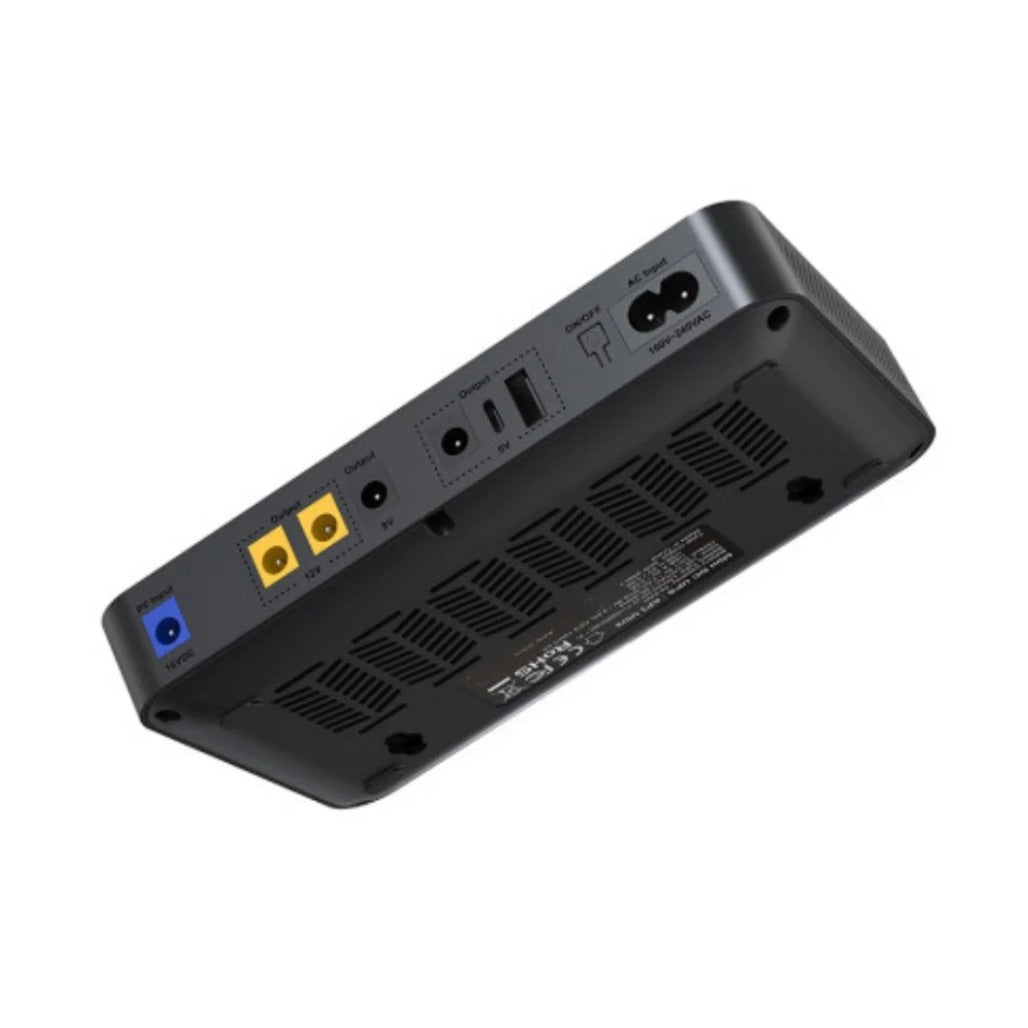

The MARSRIVA KP1 Plus 18W Mini Router UPS is a compact DC backup power solution for compatible Wi-Fi routers, internet modems, ONU and fiber devices, network switches, CCTV accessories, and other low-power DC equipment. Its 59.2Wh lithium-ion battery uses a 16000mAh configuration with four 3.7V / 4000mAh battery cells, providing backup power during electricity cuts and power switching. Four DC outputs provide 12V, 9V, and 5V options for supported devices, while USB-C and USB-A outputs provide additional 5V power for compatible USB devices. The 0ms AC-to-DC transfer helps compatible connected devices continue running without interruption during power changes. With an 18W maximum total output, the KP1 Plus is intended for routers, modems, small network devices, and other compatible low-power equipment within its output limits. Designed for home internet continuity, office internet continuity, wall-mounted router areas, and small network cabinet setups, the Marsriva KP1 Plus supports practical installation near network equipment. Built-in wall-mount slots make installation easier in router areas, network cabinets, or home setups. Its air-cooling design helps maintain stable operation during long UPS usage, while the V-0 flame-retardant ABS + PC casing supports daily-use safety and durability. The unit accepts 100VAC–280VAC AC input and 12VDC–18VDC PV input. Compatibility depends on the connected device using supported DC connector sizes and polarity, as well as the applicable output voltage and current. Runtime depends on connected device power consumption, output voltage, number of connected devices, and battery condition.
Key Features
• 4 DC outputs plus USB-C and USB-A ports
• 0ms seamless AC-to-DC switching
• Wall-mount slots for router areas, network cabinets, or home setups
• Air-cooling design
• V-0 flame-retardant ABS + PC casing
• Backup support for internet modems, ONU and fiber devices, network switches, CCTV accessories, routers, and other compatible low-power DC devices
• Supports home internet during electricity cuts and office internet continuity
• Multiple 12V, 9V, and 5V DC output options
• Additional 5V output through USB-C and USB-A
Specifications
• Product Type: Mini DC UPS
• Brand: Marsriva
• Model: KP1 Plus
• Battery Capacity: 59.2Wh
• Battery Type: Lithium-ion
• Battery Configuration: 3.7V / 4000mAh × 4
• Battery Specification: 3.7V / 4000mAh × 4
• Battery Capacity Configuration: 16000mAh
• Material: ABS + PC
• Casing Rating: V-0 flame-retardant
• AC Input: 100VAC–280VAC
• PV Input: 12VDC–18VDC
• Total Output: 18W Max
• Total Output Power: 18W Max
• DC1 Output: 12V / 1.5A
• DC2 Output: 12V / 1.5A
• DC3 Output: 9V / 2.0A
• DC4 Output: 5V / 2.4A
• USB-C Output: 5V / 2.4A
• USB-A Output: 5V / 2.4A
• Net Weight: 483g
• Dimensions: 173 × 108 × 31.8mm
• Cooling: Air-cooling
• Mounting: Wall-mount slots
• Transfer: 0ms AC-to-DC
• Compatibility: Devices using compatible DC connector sizes and polarity
• Compatible 12V devices up to 1.5A per supported DC output
• Compatible 9V devices up to 2.0A
• Compatible 5V devices up to 2.4A
• USB-powered 5V devices
• Routers, modems, and small network devices within the 18W total output limit
• Use Case: Router backup, modem backup, network device backup, CCTV accessory power, low-power DC device backup, and USB device power
• Runtime: Depends on connected device power consumption, output voltage, number of devices connected, and battery condition
• UPS Mode Operating Temperature: 0°C–40°C
• Battery Mode Operating Temperature: -15°C–50°C
• Operating Humidity: Less than 75%RH
• Storage Temperature: 15°C–35°C
• Storage Humidity: 40–75%RH
