With responsive in-cell touch technology and an advanced ergonomic design, the ViewSonic® TD2455 touch monitor delivers hands-on control for more productive workspaces and collaborative classrooms. With high-performance in-cell touch technology, this 24” (23.8” viewable) Full HD display provides smooth and responsive touch tracking, along with amazing screen performance, within a sleek and bezel-less design. USB Type-C connectivity offers a single-cable plug-and-play solution for laptops, while DisplayPort output enables easy screen mirroring or extended desktops ideal for office productivity and podium touch applications such as conference rooms or classrooms. A magnetic stylus pen lets you write or draw on screen, and easily attaches to the display stand for secure storage. So whether used on its own on office desktops, as a presentation station in corporate meeting spaces, or as a front-of-classroom interactive teaching hub, the TD2455 helps to boost efficiency and productivity. *Some laptops may need to enter BIOS mode and change the power management setting to “tap-to-wake”.

Versatile Touch Applications

Whether used as a check-in kiosk at reception, as a collaboration station with co-workers and colleagues at the office, or as a touch podium for front-facing teaching, this sleek and slim touch display seamlessly integrates into your workflow for boosted efficiency and productivity.

Agile yet Scalable Touch Display

Efficient Multitasking

With advanced DisplayPort Multi-Stream technology and support for up to 4-screen daisy chaining*, this display can transform into the ultimate touch screen workstation – in mirror and extended modes – for increased productivity. *up to 4 with a PC; up to 3 with a laptop

DisplayPort Multi-Stream Transport (MST)

Touch Annotation for Presentations

An included stylus pen easily attaches to the magnetic base of the display, and allows you to draw, write notes, or perform other detailed tasks that require more accuracy than your fingertips alone. The pen is especially useful during presentations when the TD2455 is attached to a projector.

Fine Writing Stylus

Accurate yet Smooth Touch Experience

Powered by in-cell touch technology, the TD2455 offers sensitive yet smooth touch response for detailed content editing with fingertips or the touch pen.

10-Point In-Cell Projected Capacitive (PCAP) Touch Technology

Quickly Start Your Work

The latest USB Type-C input transforms this display into a powerful hub by enabling easy connectivity to PC, laptop, and Chrome systems. In addition, it delivers charging power, video, and audio over a single cable.

USB Type-C

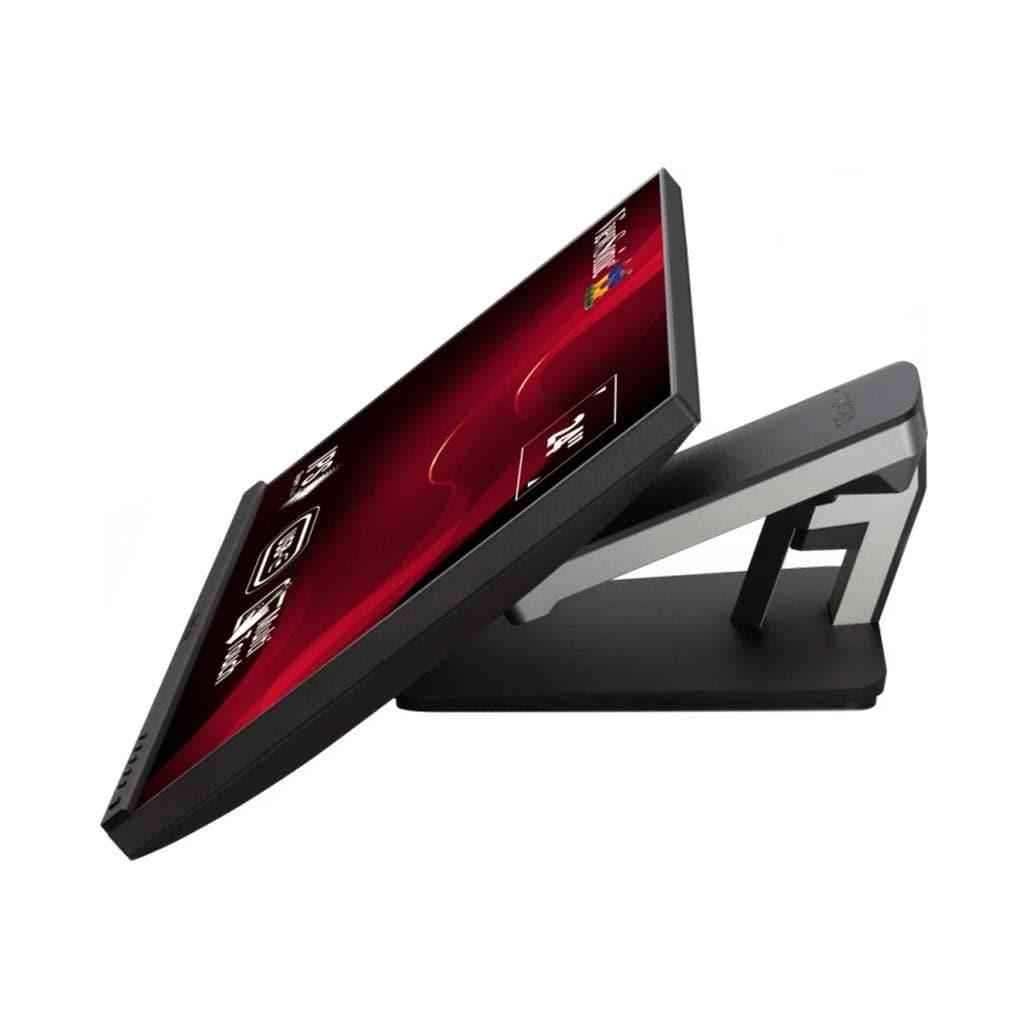

Comfortable Working Angles

Designed with an ergonomically advanced dual-hinge stand, this display can be tilted and adjusted to deliver a more comfortable user experience.

Ergonomic Dual-Hinge Design

Incredible Images, Sleek Design

With high-performance in-cell touch technology, this display provides smooth and responsive touch tracking, along with amazing screen performance, within a sleek and bezel-less design.

In-Cell Projected Capacitive (PCAP) Touch Technology

Minimal Design Concept

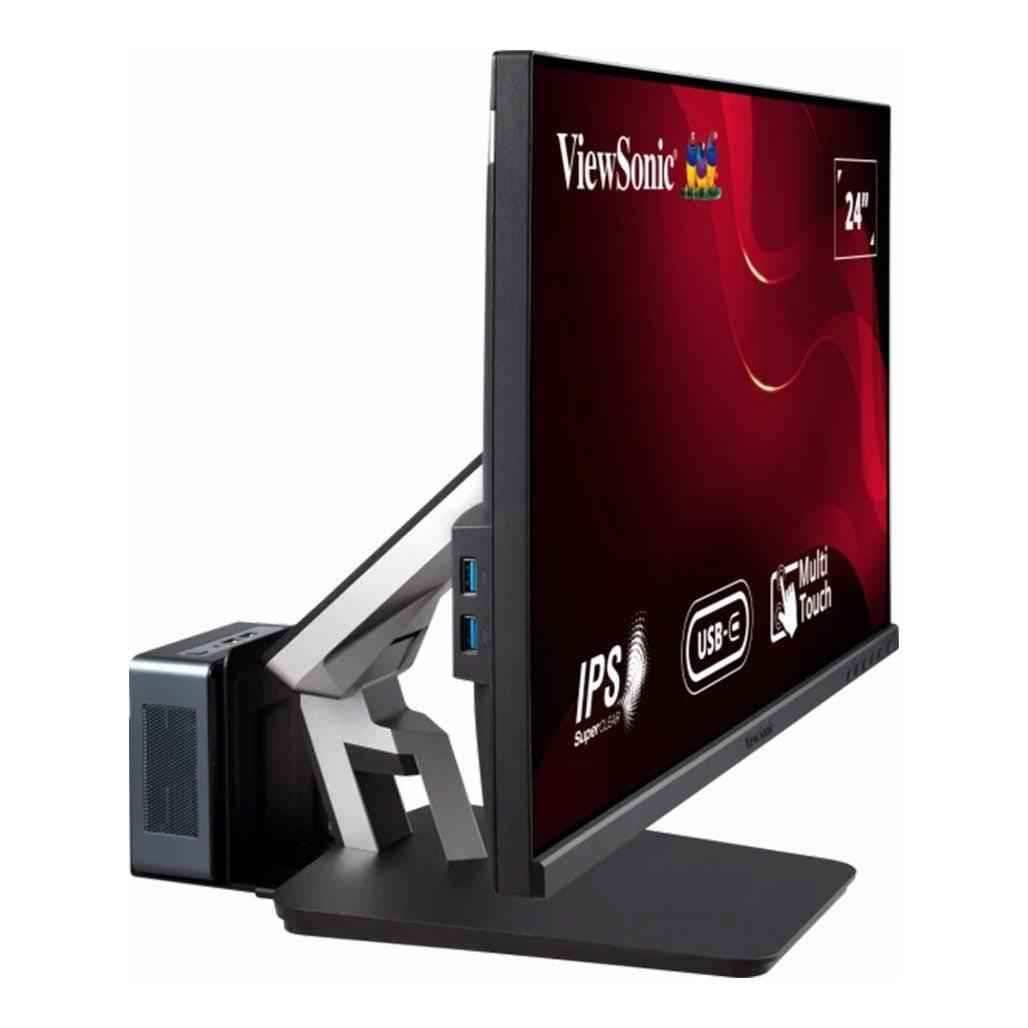

The ergonomic stand features an integrated client mount for quick installation of optional mini PC mount on the back of the display. Cable management features also keep your workspace neat.

Optional Mini PC Mount

SPECIFICATIONS

Display

• Display Size (in.): 24
• Viewable Area (in.): 8
• Panel Type: IPS Technology
• Resolution: 1920 x 1080
• Resolution Type: FHD (Full HD)
• Static Contrast Ratio: 1,000:1 (typ)
• Dynamic Contrast Ratio: 50M:1
• Light Source: LED
• Brightness: 250 cd/m² (typ)
• Colors: 7M
• Color Space Support: 8 bit (6 bit + Hi-FRC)
• Aspect Ratio: 16:9
• Response Time (Typical GTG): 6ms
• Response Time (GTG w/OD): 6ms
• Viewing Angles: 178º horizontal, 178º vertical
• Backlight Life (Hours): 30000 Hrs (Min)
• Curvature: Flat
• Refresh Rate (Hz): 60
• Blue Light Filter: Yes
• Flicker-Free: Yes
• Color Gamut: NTSC: 72% size (Typ), sRGB: 104% size (Typ)
• Pixel Size: 275 mm (H) x 0.275 mm (V)
• Touch Screen: Projected Capacitive, 10-point multi-touch
• Surface Treatment: Anti-Glare, Hard Coating (3H)

Compatibility

• PC Resolution (max): 1920x1080
• Mac® Resolution (max): 1920x1080
• PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
• Mac® Resolution (min): 1920x1080

Connector

• USB 3.2 Type A Down Stream: 2
• USB 3.2 Type B Up Stream: 1
• USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (60W power charger)
• 5mm Audio Out: 1
• HDMI 1.4: 1
• DisplayPort: 1
• DisplayPort Out: 1
• Power in: 3-pin Socket (IEC C14 / CEE22)

Audio

• Internal Speakers: 2Watts x2

Power

• Eco Mode (Conserve): 7W
• Eco Mode (optimized): 8W
• Consumption (typical): 9W
• Consumption (max): 4W
• Voltage: AC 100-240V
• Stand-by: 3W
• Power Supply: Internal Power Supply

Additional Hardware

• Kensington Lock Slot: 1

Controls

• Physical Controls: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
• On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

Operating Conditions

• Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity (non-condensing): 20% to 90%

Wall Mount

• VESA Compatible: 100 x 100 mm

Input Signal

• Frequency Horizontal: 15 ~ 82KHz
• Frequency Vertical: 50 ~ 75Hz

Video Input

• Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C

Ergonomics

• Tilt (Forward/Back): -5º / 60º

Weight (imperial)

• Net (lbs): 2
• Net Without Stand (lbs): 2
• Gross (lbs): 6

Weight (metric)

• Net (kg): 4
• Net Without Stand (kg): 7
• Gross (kg): 4

Dimensions (imperial) (wxhxd)

• Packaging (in.): 3 x 16.3 x 11.2
• Physical (in.): 2 x 16.8 x 11.3
• Physical Without Stand (in.): 2 x 12.6 x 2

Dimensions (metric) (wxhxd)

• Packaging (mm): 617 x 415 x 285
• Physical (mm): 539 x 426 x 286
• Physical Without Stand (mm): 539 x 320 x 52

General

• Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, BSMI, RCM, GEMS, KC, K-MEPS, BIS, CCC, China RoHS, China Energy Label, CECP
• PACKAGE CONTENTS: TD2455 x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1, Passive touch pen x1, Passive touch pen head x1
• Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
• Power Management: Energy Star standards, EPEAT
